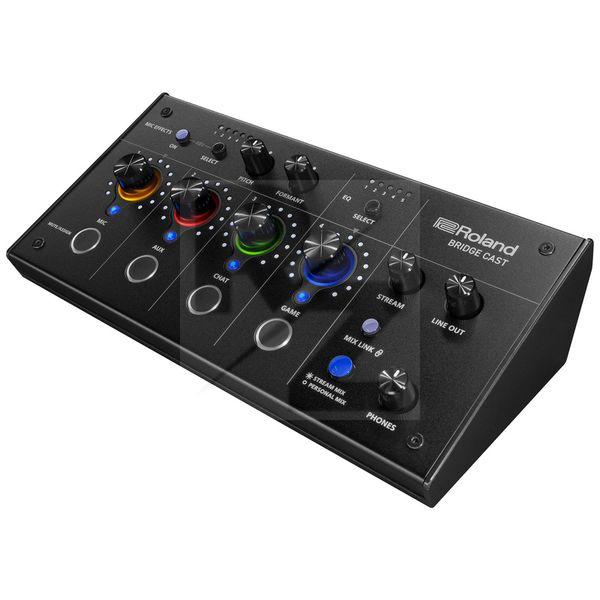

Roland Bridge Cast

Technical Data

• Manufactured by Roland
• Average price : $326
• USB audio interface for gaming and streaming applications
• 24 bit / 96 kHz
• Built-in 4-channel mixer for microphone and 3 streaming channels - aux, chat, game
• Each with assignable button and illuminated rotary control
• XLR microphone input with +48 V phantom power
• 32-bit hardware DSP for effects calculation
• Noise reduction, compressor, equaliser, de-esser, reverb and high-pass filter for microphone channel as well as voice effects from the Roland VT series
• Further effects: De-esser and compressor for chat channel, equaliser for game channel, and delay for streaming output for synchronisation.
• Dual bus architecture: two independent mixes can be created for online streaming and own monitoring
• Front panel removable and customisable with own designs
• BRIDGE CAST app for further settings such as voice effects, equaliser presets, assignment of buttons and knobs to different functions, backlight colour and more
• Separate volume controls for streaming, line out and headphone out
• USB-C port for power supply (5 V DC, 1.0 A - power supply not included)
• USB-C port for connecting PC, mobile devices and consoles - compatible with iOS and Sony PlayStation 5
• Headphone/headset jack: 3.5 mm stereo jack, CTIA
• Aux input: 3.5 mm stereo jack
• Line output: 3.5 mm stereo jack
• Dimensions : 222mm x 110mm x 70mm
• Weight : 450g
• Incl. Quick Start Guide, USB-C cable and USB-C to USB-A cable
