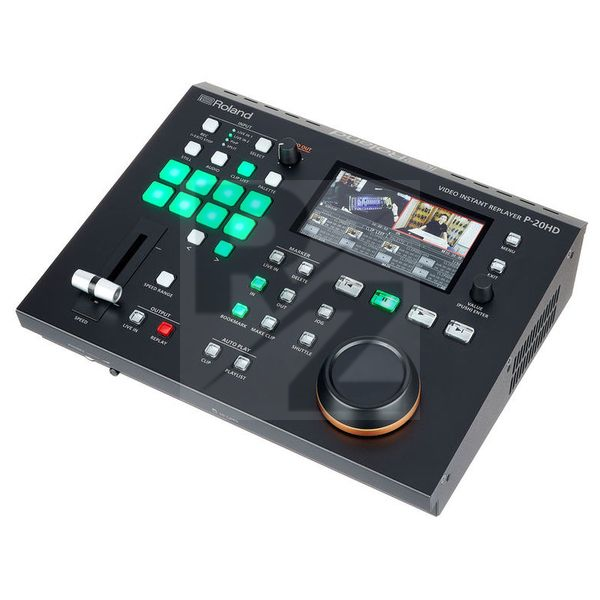

Roland P-20HD Video Instant Replayer
Instant Replay Video Recording and Playback System
Latest User Reviews
Instructions could be better
Purchased this product to facilitate the inclusion of instant replay into my streamed events. Product works well but I feel that the instructions on setup and operation could be better- of all the products I have purchased for streaming this one has least in terms of online instructions. Normally when I purchase a product there are lots of reviews and operational instructional videos on line but not so for this. It took me some hours to get started but once I got going no problem. I am still working my way through the features etc. and im sure I will get there but the journey could have been quicker with a good instructional video.
Technical Data
- Manufactured by Roland
- Released in 2021
- Average price : $1748
- Instant replay slow motion with variable playback speed
- Intuitive control for stand-alone users in sports productions
- Parallel recording and playback
- Create clip playlists for highlight compilations
- Integrated colour LCD as preview screen
- Extended recordings on inexpensive and widely available SD cards
- Video processing: 4:2:2 (Y/Pb/Pr), 8-bit
- Inputs: 2x HDMI / 2x RCA
- Outputs: 2x HDMI / 2x RCA / 3x jack
- Data: 1x USB 3.0 / 1x RJ-45 / 1x RS-232
- Input formats: 20/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59. 94p, 1080/50p, SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz), WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz), SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz), UXGA (1600 x 1200/60Hz), Full HD (1920 x 1080/60Hz), WUXGA (1920 x 1200/60Hz)
- Output formats: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 1080/59.94p, 1080/50p
- Recording mode: Instant playback mode
- Codec: H.264 [email protected] 10Mbps 8-bit 4:2:0, AAC LC 128kbps, 48kHz, 16-bit stereo
- Recording media: SD/SDHC/SDXC card
- Effects composition: PinP, SPLIT
- Transition effects: CUT, MIX, WIPE
- Other effects: Mirror horizontally, freeze frame playback, test pattern output
- Audio processing: Sample rate: 24 bit/48 kHz
- Audio formats: Linear PCM, 24 bit/48 kHz, 2-channel
- Audio input level: -10 dBu (maximum: +8 dBu)
- Audio input impedance: 15 kOhm
- Audio output level: -10 dBu (maximum: +8 dBu) (audio out) / 92 mW + 92 mW (32 ohms) (headphones)
- Output impedance: 1 kOhm (audio out) / 10 Ohm (headphones)
- Audio effects: EQ, delay, limiter, test tone output
- Audio player file format: WAV (Linear PCM, 48 kHz / 48 kHz, 16-bit, stereo
- Other functions: Panel lock function, EDID emulator
- Display: 4.3" TFT colour LCD: 480 x 272 pixels
- Power supply: Mains adapter
- Power consumption: 3 A
- Power consumption: 36 W
- Operating temperature: 0 - 40 °C
- Dimensions : 265mm x 216mm x 57mm
- Weight : 2.1kg
