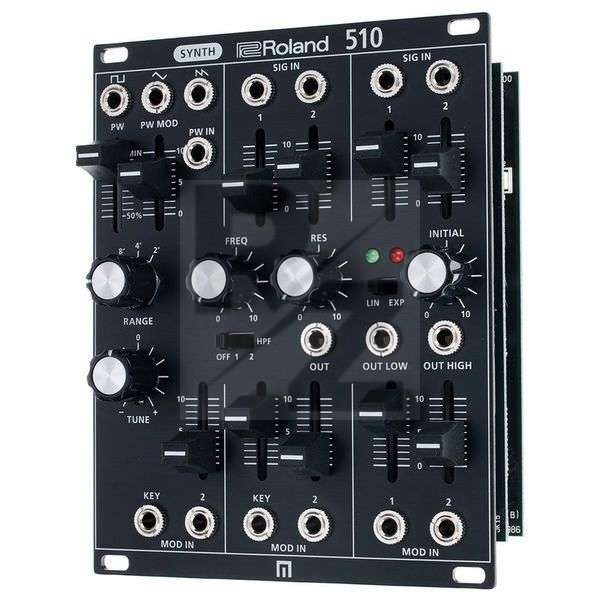

Roland System-500 510

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Roland
Released in 2019
Average price : $511
Analogue synthesiser voice consisting of VCO, VCF and VCA based on the Roland System 100m
VCO with outputs for triangle, sawtooth and square wave (with pulse width modulation)
Classic Roland low-pass filter with resonance control, two mixable audio inputs and two modulation inputs
Two-stage switchable high-pass filter
VCA with two mixable inputs
Two outputs and switching between linear and exponential response
Power requirement: 75 mA (+12 V) / 60 mA (-12 V)
Width: 20 HP
Height: 57.2 mm
