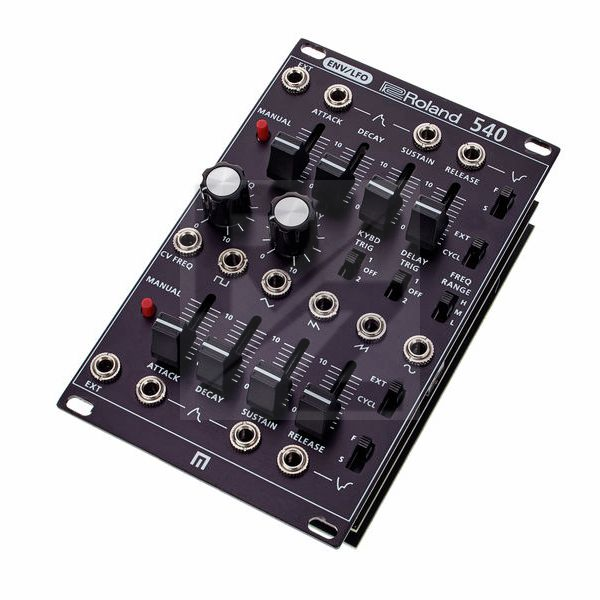

Roland System-500 540

Technical Data

• Manufactured by Roland
• Released in 2016
• Average price : $457
• Dual Envelope Generator & LFO (Low Frequency Oscillator) is a multifunctional modulation source
• Two independent ADSR envelope sections (Attack, Decay, Sustain, Release) can generate different voltages to control other synthesizer modules in Eurorack format (e.g. oscillators, filters and VCAs)
• Each section can be triggered in different ways: via an external source, internally, manually via the connections for each of the envelopes or via an inverted output signal
• In addition, the 540 module has a voltage controlled LFO with 5 waveforms
• Both the frequency and the application delay of the LFO start point can be set via the control dials
• The delay and reset can be triggered either from Envelope 1 or Envelope 2
• Power consumption: 85 mA (+12 V), 50 mA (-12 V)
• Dimensions : 81mm x 58mm x 129mm
• Euro bag width: 16 HP
• Incl. 4 screws for installation and Eurorack bus power cable
