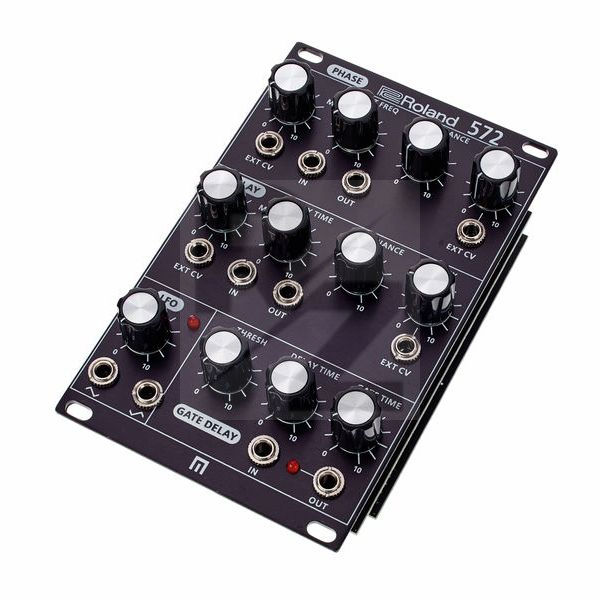

Roland System-500 572

Technical Data

• Manufactured by Roland
• Released in 2016
• Average price : $435
• Phase shifter + delay + LFO
• Time-dependent multi-effect module
• Has a 5-stage phase shifter, an analog audio delay, a voltage-controlled gate delay and an LFO
• The Phase shifter has controls for shifting the frequency or the intensity of the resonance
• Thus, both subtle and very superficial analog effects are adjustable
• The Audio Delay has independent controls for controlling the delay time and the resonance (or feedback) and other features. Also very short modulations can be adjusted, which sound like a chorus effect
• Both the phase shifter and the delay can be modulated either via the internal LFO of the 572 or via external CV signals
• The ratio between the original and the effect signal can be adjusted via the controller or CV (Control Voltage)
• The LFO section has a control for setting the frequency as well as output jacks for the normal and inverted output of the signal
• The gate delay has controls for controlling the threshold, delay time, and gate time for controlling incoming gate signals from external modules
• Power consumption: 110 mA (+12 V), 90 mA (-12 V)
• Dimensions : 81mm x 58mm x 129mm
• Euro bag width: 16 HP
• Includes 4 screws for installation and Eurorack bus power cable
