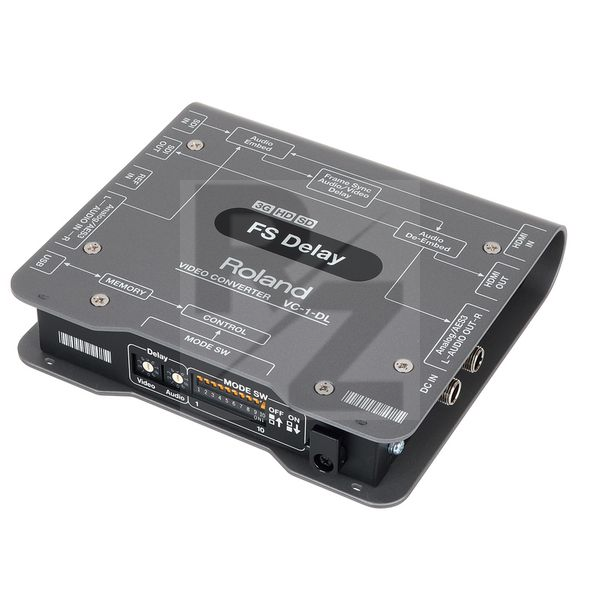

Roland VC-1-DL

Bi-Directional SDI/HDMI Converter with Delay and Frame Synchronisation

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Roland
Released in 2021
Average price : $872
Conversion from HDMI to SDI
Conversion from SDI to HDMI
Lossless image conversion
3G (Level A&B)/HD/SD-SDI
HDCP support
Internal frame synchronisation
Audio delay - up to 9 fields (4.5 frames)
Video delay - up to 9 fields (4.5 frames)
VC-1 RCS control software for PC/Mac
Channel selection for embedded/de-embedded audio
SDI input: 1 x BNC
HDMI input: 1 x type A (19 pins)
Analogue audio input: 1 x L/R 1/4" TRS phono (balanced)
Digital audio input: balanced 1 x 1/4" TRS jack (combined use of analogue audio R ch connector)
Reference input: 1 x BNC
Reference signal: Black Burst
TriLevel
Reference impedance: 75 Ohm
SDI output: 1 x BNC
HDMI output: 1 x type A (19 pins)
Analogue audio output: 1 x L/R 1/4" TRS phono (balanced)
Digital audio output: balanced 1 x 1/4" TRS jack (combined use of analogue audio R ch connector)
USB connection: 1 x USB type B
Power consumption: 8 W
Power supply: DC 9 V
Dimensions (L x W x H): 150 x 130 x 30 mm
Weight : 500g
Included in delivery: Power supply unit with mains cable and 4 x rubber feet
