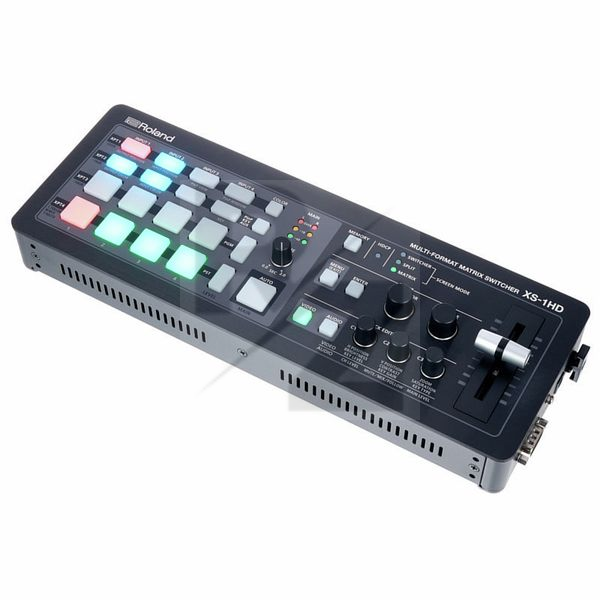

Roland XS-1HD

Matrix Switcher

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Roland
Released in 2017
Average price : $2511
With four HDMI Type A inputs and outputs each
Ideal for live productions, permanent installations, conferences etc.
Each input has a high-quality scaler
4:4:4/10-bit processing up to WUXGA / 1080p
Frame synchronization and scaler on all inputs
1. Matrix operating mode: to switch the four sources to four outputs
2. Switcher operating mode: for picture in picture, key composing and crossfading
3. Split operating mode: for PinP display with up to three PinP windows
Integrated 8-channel digital audio mixer for processing audio signals from the HDMI inputs and the analog stereo input
Integrated EDID emulator
HDCP Compliant
Still images can be loaded via USB flash memory
RS-232 connection for control via external operating unit
Built-in test image generator
Dimensions: 328 x 117 x 57 mm
Weight : 1.2kg
