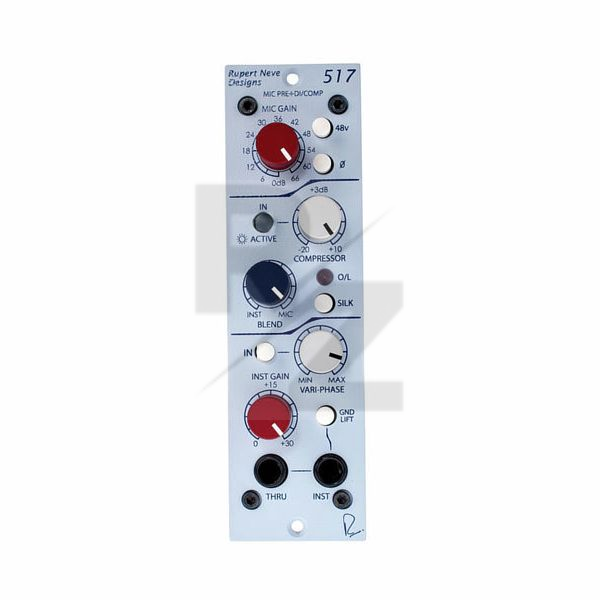

Rupert Neve Designs 517

Microphone preamplifier, compressor and DI

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Rupert Neve Designs
Released in 2012
Average price : $1138
With Vari-phase, Silk and DI / mic blend
Frequency range: Main output, no load, -0.2 dB @ 10 Hz -3 dB @ 160 kHz
Noise: measured at main output, unweighted, 22 Hz-22 kHz
Microphone gain up to 66 dB
DI gain from 0db to 30dB
Maximum Output Level: from 20 Hz to 40 kHz +23 dBu
Total harmonic distortion and noise: @ 1 kHz, + 20 dBu output: Main Output: better than 0.001% at 20 Hz, +20 dBu Output: Main Output: better than 0.002% Silk activated: better than 0.2% Second Harmonic
Crosstalk (measured from channel to channel): better than -90 dB @ 15 kHz
Phantom Power: +48 Volts DC +/- 1%
Construction: API Series 500 rack format
