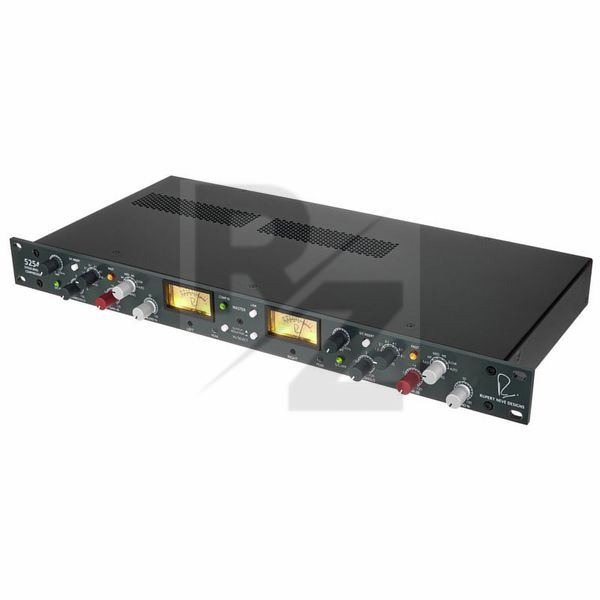

Rupert Neve Designs 5254

2-Channel Diode Bridge Compressor

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Rupert Neve Designs
Released in 2021
Average price : $3755
Custom transformers and Class A line amplifiers
Stereo link or 2x mono
Integrated parallel compression
Input impedance: 10 kOhm
Output impedance: 40 ohms
Maximum input level (+ 4dBu selected): +26.7 dBu
Maximum output level: +26.7 dBu
Noise (22 Hz - 22 kHz BW): -104 dBu
Frequency response (10 Hz to 120 kHz): +/- 0.25 dB
THD + N @ 1 kHz @ maximum level (22 Hz - 22 kHz BW): 0.0008%
Compressor Noise Specifications: Noise at 0dB Make-Up Gain (22 Hz - 22 kHz BW): -84.5 dBu, Noise at + 20dB Make-Up Gain (22 Hz - 22 kHz BW): -64.5 dBu
Gridded control elements with 31 levels
Input / output connectors: XLR
Sidechain send / return connection: 6.3 mm jack
Ground lift switch
Dimensions: 19" 1U
Weight : approx. 4kg
