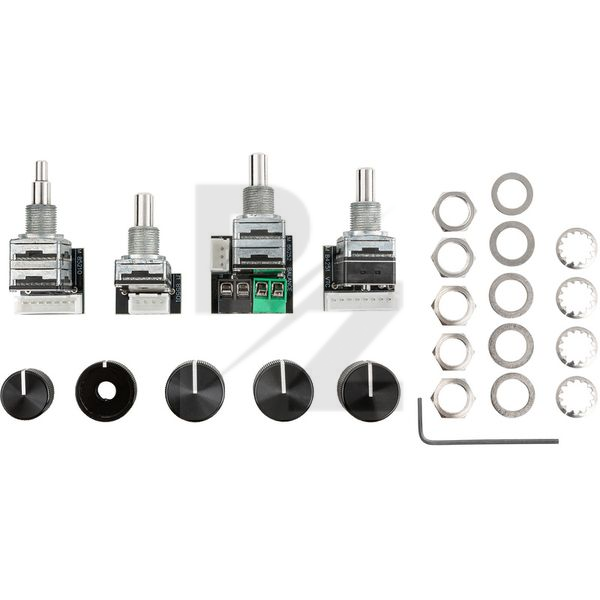

Sadowsky Onboard Bass Preamp F-Style

Pre-Wired Onboard Bass Preamp

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Sadowsky
For electric basses with 4-knob layout, side socket and battery compartment
Active preamp for passive pickups
4-knob layout with control options for master volume / balance / vintage tone control (P/P) / treble and bass (stacked)
Push/pull function on the VTC control for preamp bypass
Longer cables between the potentiometers to ensure installation in basses other than Sadowsky basses
Screw terminals on the balance potentiometer for solder-free installation of the pickups' hot & ground cables
Without control plate
Frequency range: 5 - 50,000 Hz
Bass control offers +18 dB boost at 40 Hz
Treble control offers +18 dB boost at 4 kHz
Total harmonic distortion (THD) 0.18% at 1 kHz
Power supply with a 9V battery
Current consumption 9 mA
Up to 870 hours of battery life
1 MOhm input impedance
Output impedance 1 kOhm
