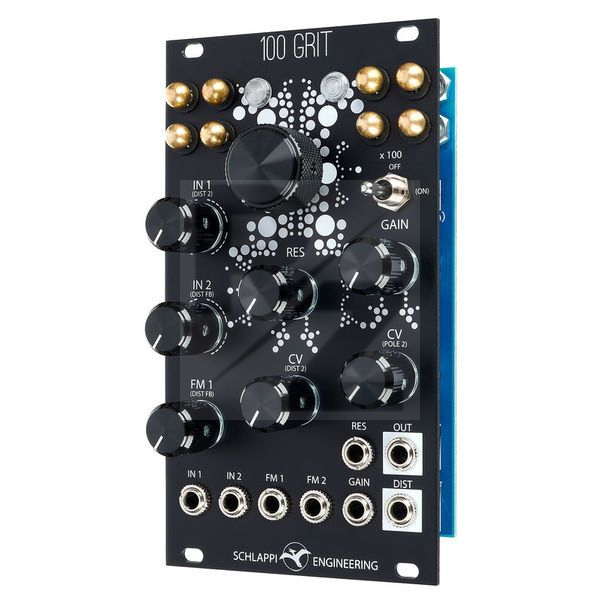

Schlappi Engineering 100 Grit Black
Eurorack Module
Latest User Reviews
Clean and Dirty
This is a low pass filter that can be clean and tame when you want it to be, or pushed very easily into more more noisy and distorted territory. When used conventionally the lowpass has a pleasant sound to it while the resonance has a sharper bite to it than on other filters I own. When nudged a little, by upping the input/gain/CV the range of noise and distortion that this filter can produce is pretty large and the resonance can scream. The filter can also produce distorted semi random noise when unpatched! Despite its noisy nature there are a lot of sweet spots in this filter, and it is possible to dial this in to taste.
amazing!!
if you want a crazy filter with even crazier distortion this module is for you. the touch points at the top help with manipulating the sound and when you add external modulation all kinds of strange things start to happen.
A must have
If you like nasty sounds that's your filter, it can be gente as well but man it screams, best module i buy in a while...100%(grit) recommended
Technical Data
- Manufactured by Schlappi Engineering
- Released in 2022
- Average price : $327
- Filter with VCA and distortion
- Low-pass filter (24dB/oct.) with cutoff and resonance control
- 2 FM inputs (FM1 with attenuator)
- 2 Adjustable audio inputs with overdrive option
- OTA-based VCA with gain control and CV input with attenuator
- Distortion output stage with gain switch (x100)
- 8 Brass contacts allow to connect different parts of the circuit by touching with fingers, cables or metal parts
- All inputs are normalised to various circuit sections and allow feedback and self-modulation
- Separate outputs for VCA and distortion stage
- Current consumption: 55 mA (+12 V) / 70 mA (-12 V)
- Width: 14 TE
- Depth: 25 mm
- Colour: Black
