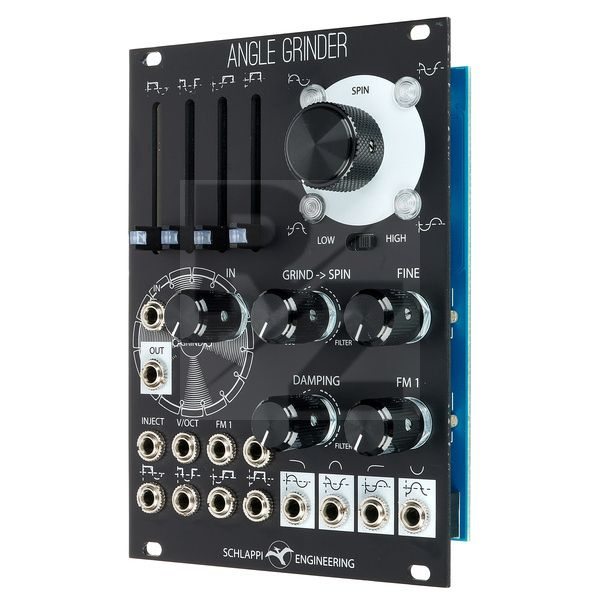

Schlappi Engineering Angle Grinder Black
Eurorack Module
Latest User Reviews
LFO/Oscilator/Filter/Waveshaper
This module packs a lot of features and sure is a hell of a lot of fun. It is a really nice sounding filter (with 4 modes) and can act as a nice voice (it tracks volts per octave really well). It can also act as a very brutal wave shaper/distortion. It can play nice or sound like some malfunctioning instrument. It is probably not for the faint of heart as it can get pretty extreme very easily. It can also take some time to understand how it functions as well.
Technical Data
- Manufactured by Schlappi Engineering
- Released in 2022
- Average price : $391
- Quadrature sine oscillator with filter and waveshaper
- SPIN section: Quadrature sine wave oscillator with 4 outputs (0°, 90°, 180°, 270°) and tracking over 4 octaves
- GRIND section: Compares the SPIN outputs with an input signal and derives square wave signals which are fed into a VCA and modulated by the 4 GRIND CV inputs and GRIND fader
- Depending on the setting, the module functions as an oscillator or state variable filter
- Controls for coarse and fine tuning, attenuation, GRIND/SPIN ratio
- FM input with attenuator (linear or exponential)
- GRIND input with attenuator
- 4 SPIN outputs provide phase-shifted sinusoidal signals or in filter mode low-pass, band-pass, high-pass and notch characteristics
- Current consumption: 81 mA (+12 V) / 78 mA (-12 V)
- Width: 18 TE
- Depth: 25 mm
- Colour: Black
