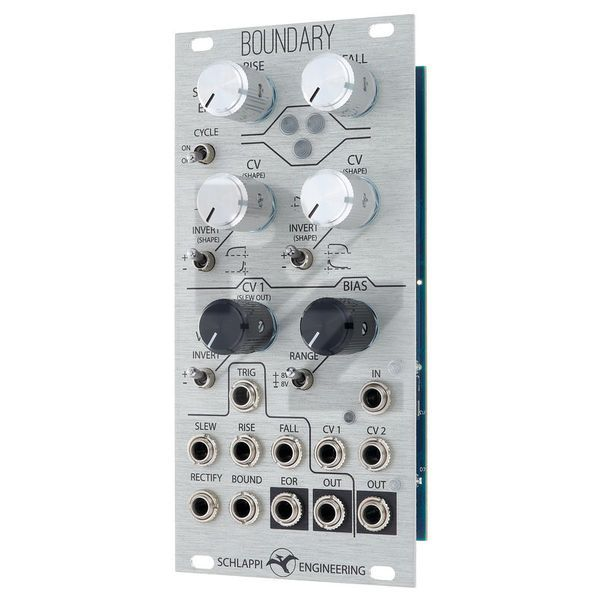

Schlappi Engineering Boundary

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Schlappi Engineering
Released in 2022
Average price : $260
Flexible function generator with VCA
Possible applications: AD or ASR envelope, LFO, oscillator, frequency divider, wave shaper, envelope follower, ring modulator, VCA and more
Attack and decay time (rise / fall) separately adjustable and each controllable via CV input
Adjustable characteristic curve for rise and fall segment
Switchable cycle mode
VCA / four-quadrant multiplier with adjustable bias and CV input with attenuator
Rectify input (rectifier)
Bound input for generating "bouncing ball" envelopes
Inputs for trigger, slew, rise CV and fall CV
EOR and signal output for function generator
Signal input/output and 2 CV inputs for VCA section
Current consumption: 112 mA (+12 V) / 59 mA (-12 V)
Width: 12 TE
Depth: 25 mm
