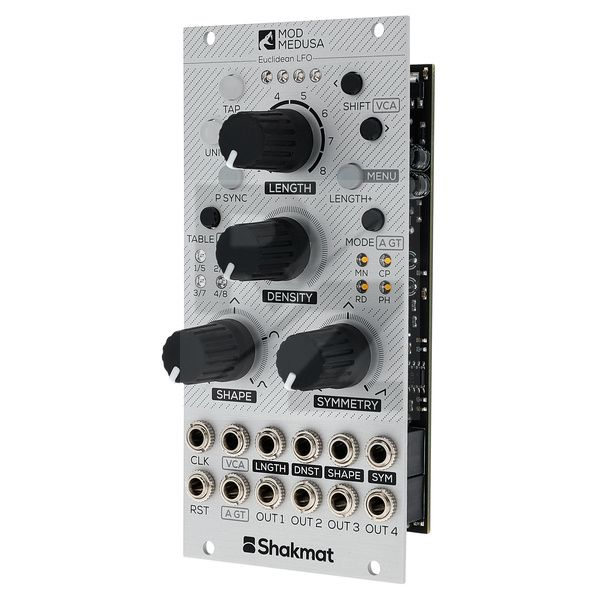

Shakmat Modular Mod Medusa

Technical Data

• Manufactured by Shakmat Modular
• Released in 2022
• Average price : $327
• Euclidean 4-channel LFO
• 4 LFOs triggered in correlation to each other or independently from internal Euclidean sequencers
• Adjustable sequencer parameters: Length (1-16 steps), Density and Shift
• 8 Selectable sequence tables
• Symmetry and Shape controls for setting the LFO waveform
• 4 Correlation modes (Main, Compute, Random, Phase) selectable or independent setting of all parameters per channel possible
• Tap tempo
• Adjustable clock divider per channel
• Gate input with 8 selectable functions (Ratchets, Track & Hold, One-Shot)
• Assignable VCA CV input
• Clock and reset inputs
• Bipolar CV inputs for length, density, shape and symmetry
• 4 Unipolar or bipolar LFO outputs
• Power consumption: 55mA (+12V) / 30mA (-12V)
• Width: 12 U
• Depth: 21 mm
