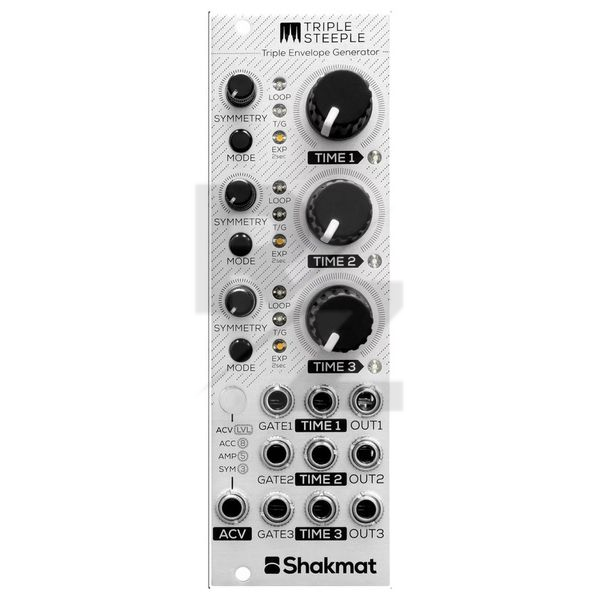

Shakmat Modular Triple Steeple

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Shakmat Modular
Released in 2023
Average price : $289
3-Channel envelope generator
Per channel: Attack/decay envelope, adjustable via the Time (total time) and Symmetry (attack/decay ratio) controls
5 Selectable modes per channel: AD envelope, ASR envelope, looped, gated loop and clocked loop with clock divider
Envelope shape switchable from linear to exponential
CV input
Assignable to three selectable parameters
Output voltage adjustable from 0 V to +8 V
Per channel: Gate input, CV input for time, envelope output
Power consumption: 40 mA (+12 V) / 8 mA (-12 V)
Width: 8 U
Depth: 21 mm
