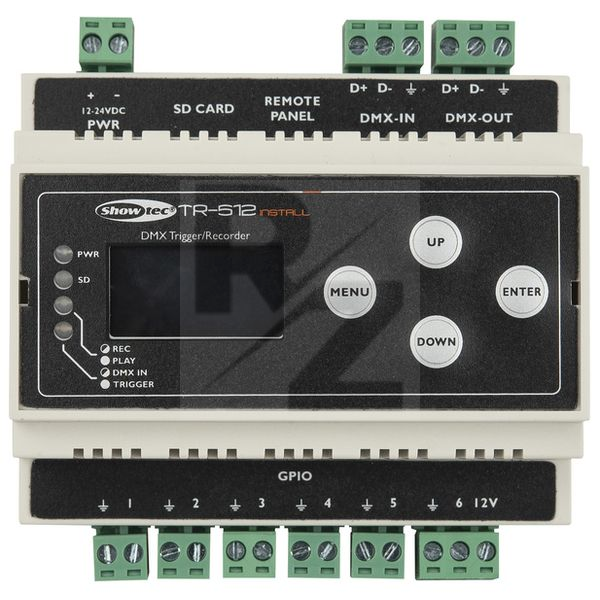

Showtec TR-512 Install

Compact DMX Recorder / Trigger

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Showtec
Playback device for busbar mounting
DIN rail
Compact, permanently installed DMX recorder/playback unit that can easily trigger any light show
Can record and play back several shows, which can be saved on the supplied micro SD card
Each show can be played in loop mode or individually
Automatic start when switching on or a delayed start can be set to have precise control over the show
OLED display
LED displays: Operating mode, power, signal
Storage type: SD-Card
Control mode: DMX, GPIO, manual, remote control
Protocols: DMX
Universes: 1
DMX channels: 512
DMX connection: Phoenix In / Out
Connection: RJ45
IP protection rating: IP20 (for indoor use only)
Power supply: 12 W DC
Power consumption: 6W
Power input: Phoenix
Plastic housing
DIN rail spacing: 35 mm
Dimensions (L x W x H): 106 x 87 x 58 mm
Weight : 0.18kg
Colour: Grey
Includes Micro-SD card
