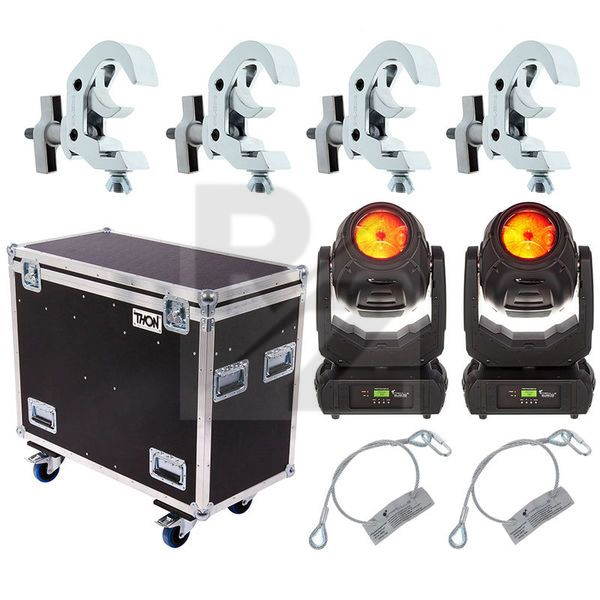

Stairville BS-280 R10 BeamSpot Tourpack

Technical Data

• Manufactured by Stairville
• Released in 2017
• Average price : $4200
• BeamSpot Moving Head
• Multifunctional moving spotlight of the professional class
• Can optionally be used as a beam or moving spotlight
• Versatile functions such as two gobo wheels, frost filter, X-facet prism, motorised zoom and focus and colour wheel with 27 colours
• Suitable for professional users, such as distributors, musicals, discos, festivals and many more
• Includes light source MSD280 R10
• Control: DMX 512 (15 or 21 channels)
• Pan: 540°
• Tilt: 270°
• Pan and tilt speed adjustable
• Pan and Tilt-invers adjustable via display
• Automatic pan and tilt correction
• Mechanical dimmer
• Mechanical shutter and strobe effect
• Colour wheel with 27 colours + split colours + open and colour pass in both directions with speed regulation
• Two gobo wheels with gobo run and gobo shake (Image size 13 mm / Gobo size 14.8 mm): first gobo wheel with 14 static gobos, second gobo wheel with 9 freely rotatable and indexable gobos
• Two rotatable and indexable effect prisms (8 facets round and 5 facet lines)
• Motorised zoom: Beam: 3° - 11° / Spot: 7° - 25°
• Motorised focus
• Frost filter
• Fan cooling
• Connections: DMX input and output: 3 pin XLR
• Power input and output: PowerTwist
• Includes Power Twist cable (approx. 1.5 m)
• Power supply: 100-240 V, 50/60 Hz
• Max. Power Consumption: 347 W
• Dimensions : 365mm x 574mm x 256mm
• Weight : 17kg
• Transport Case with Wheels
• For 2 x Stairville BS-280-R10 (2018 model)
• Made from 7 mm plywood
• 30 x 30 mm Aluminium edge
• 2 Butterfly latches
• 3 Lid locks
• 8 Folding handles
• Steel ball corners
• Foam inlay and padding
• Central accessory compartment
• 4 Swivel castors 100 mm, 2 with brakes
• External dimensions (W x D x H): 900 x 450 x 844 mm
• Weight : 32.3kg
• Colour: Black (RAL 9004)
• Selflock Hook
• For tubing from 48 - 52 mm
• Ideal for theatre, musical and stage applications
• With M10 screws
• Carrying capacity IAW BGVC1 120 kg
• TÜV approved for 250 kg
• Safety Cable Set
• Length K-K: 80cm
• Diameter: 6 mm
• Load bearing capacity: max. 22 kg
• Galvanised safety cable according to DIN 56927
• Steel wire cable EN 12385 6 x19 + FC 6 mm Ø
• Thimble on both sides (BF DIN 6899 RW), fixed with ferrule according to EN 13411-3
• In one of the thimbles: Quick link DIN 56926 - B - 200 opening width 14.5 mm
• Wire label: "Stairville max. 22 kg" according to DGUV directive 115-002 17 (Ex. BGV C1)
