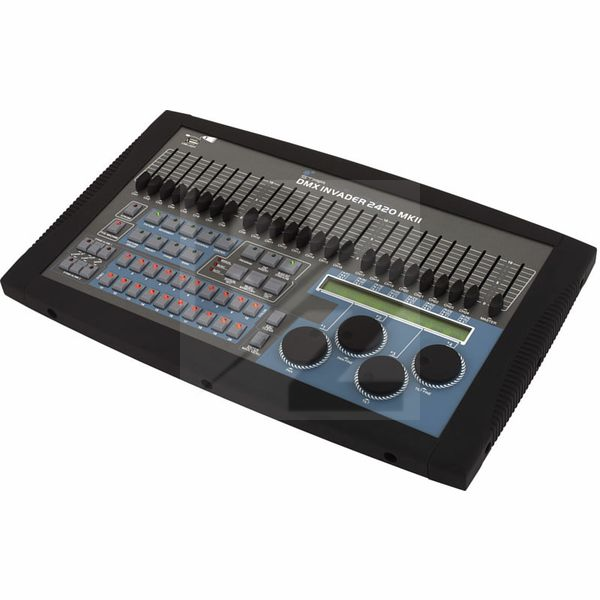

Stairville DMX Invader 2420 MK II
Light Mixer
Latest User Reviews
Excelent, and simple
Very good packaging, built quality, and very simple to use.
Stairville DMX Invader 2420 MK II: small and handy.
Small and handy light mixer. Easy to operate, functional. Good choice in its class.
Customer review: Stairville DMX Invader 2420 MK2
I purchased one of these for an installation job. The particular application was to illuminate a display by controlling a set of 20 LED PARs with just a handful of scenes programmed to cross-fade slowly in a continuous loop.
The controller is designed to work with fixtures having up to 24 channels with fixed DMX addressing, i.e. at intervals of 24. This means the set of 20 LEDs I was using didn't leave any scope for expansion even though these particular fixtures occupied only seven channels each.
Programming of scenes was fairly straightforward and I achieved the desired results even though configuring fade-times was slightly confusing; there being different ways of achieving that: 'internal' and 'external' modes. I tried programming the scenes into a chase but found the best results for my application was to use auto scene recall without bothering with chases. As for programming 'cues'...didn't even attempt that!
Anybody who has had even moderate experience of programming for intelligent fixtures using the more basic Stairville products should have no problem adapting to the much more capable Invader 2420 MK2.
Technical Data
- Manufactured by Stairville
- Released in 2014
- Average price : $623
- Controls up to 20 fixtures/ devices, each with up to 24 channels
- 20 Presets each with 10 colours and 10 gobos
- 1200 Scenes (60 banks, each with 20 scenes) and 20 chases can be programmed
- "Effect generator" with 10 pre-programmed movement patterns (adjustable pan/ tilt position, range, "fade" time, "wait" time and loop), which also allows new users quick programming of complex shows
- Up to 50 user-defined device types can be created and stored in the "device library"
- Clearly structured arrangement of the controls and the LCD display for intuitive operation and simple programming of light shows
- 2x 3-Pin DMX outputs
- 484 DMX channels (including channel 481 for DMX fog machine and the channels 483-484 for a DMX strobe)
- 10 Pre-programmed movement patterns
- 20 Programmable chases (200 scenes per chase)
- 1200 Programmable scenes (60 banks x 20 scenes)
- 20 Presets, each with 10 colours and 10 gobos
- 20 Fixtures, each definable with up to 24 channels
- 24 Faders controlling the 24 DMX channels of each device
- 20 Cues (combines chases to a show)
- 20 Over layer/ overwrite functions to change channels in a running show
- 20 Center positions (for each fixture, a separate zero point is definable)
- Password protection possible
- Standard MIDI connector
- USB connector for gooseneck lamp (included)
- DMX and analogue strobe controllable
- Connector for USB desk light
- Additional USB port on the back for backups or firmware updates
- Power supply: 230 V/ 50 Hz
- Format: 19"/ 6 U
- Installation depth: 100 mm
- Weight : 5.3kg
- Size: 483 (19") x 264 (6 U) x 100 mm
