Stairville DMX Splitter Pro 3+5 pin

DMX Splitter

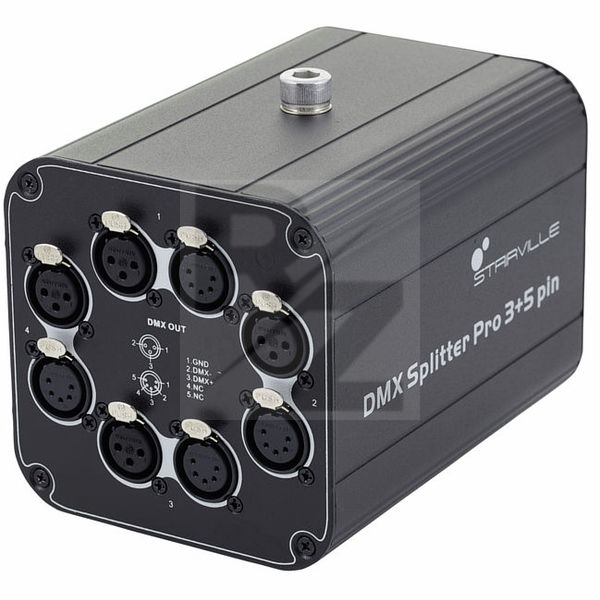

Image Stairville DMX Splitter Pro 3+5 pin

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

6 years ago

Stariville DMX

Been using it for a while now on a small scale touring production. It's reliable and easy to use. So far just the product I needed.

6 years ago

Nice

Very convenient splitter. Good form factor.

6 years ago

Great splitter

Have used this for 3 years and have never had any problems with it

7 years ago

Good splitter

We haven't had any problems using this. Has enough splits and the quality is good. Maybe a little bulky, but that's not a problem

8 years ago

Excellent product

A nice small alternative to 19" rack mount alternatives. Very useful also that it can be mounted on a bar. The connector sockets are all high quality and secure. I will certainly be buying another one!

10 years ago

excellent budget dmx splitter with better features than many more expensive ones

This is a fantastic unit, and in many ways is a lot better than some far more expensive DMX splitters on the market. I used mine for over a month solid on a festival after I bought it with no problems whatsoever. Having both 3 and 5 pin outputs is really handy when using some budget lighting gear and saves having stacks of adaptors. It also has two mounting points for clamps or other accessories and a safety bond attachment point which is very handy, and powers from a professional powercon connector. I'd happily use these over units costing 4 times as much - and for the price difference you could just buy two. My only criticism is that the construction feels a little bit flimsier than some of the more expensive units, but it's still reasonably rugged, especially given the great price.

Read all reviews >>

Technical Data

  • Manufactured by Stairville
  • Released in 2014
  • Average price : $161
  • Suitable for trusses or rig assemblies
  • Distributes, amplifies and buffers effectively DMX-512 signals
  • 3 + 5-pin XLR DMX input
  • 3 + 5-pin XLR DMX output for looping through (passive)
  • Fully active isolated DMX outputs: 4x 5-pin XLR, 4x 3-pin XLR
  • Inputs and outputs galvanically isolated up to 2 kV
  • Power Twist input and output
  • Power supply: AC 230 V, 50 Hz
  • Dimensions (L x W x H): 156 x 120 x 120 mm
  • Weight : 1.30kg
  • Includes Power Twist cable
