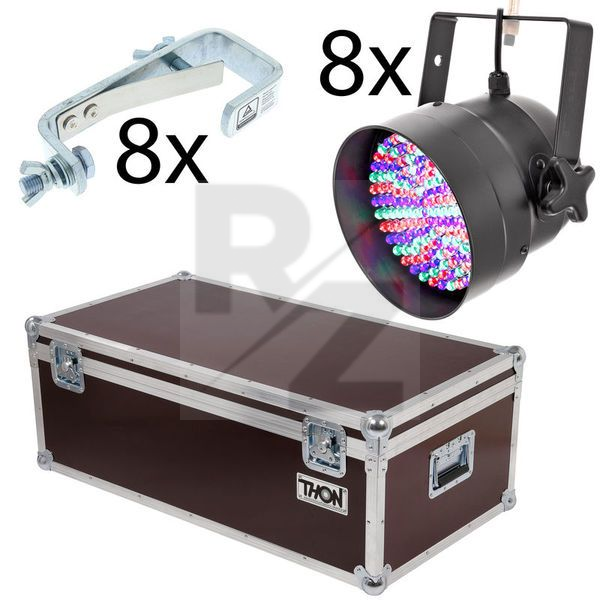

Stairville LED PAR 56 B 8er Road Kit MK2

Technical Data

• Manufactured by Stairville
• Released in 2009
• Average price : $767
• Custom-made Lighting Equipment Case
• For 8 x Stairville LED PAR 56 short
• 8 Compartments, each with dimensions 22 x 22.5 x 28.5 cm
• Material: 7 mm Plywood
• 25 x 25 mm Aluminium edge
• Min. 1 cm foam padding
• 2 Spring-loaded butterfly latches, medium
• 2 Folding handles
• 4 Steel ball corners on top
• 4 Stackable steel ball corners at the bottom
• Outer dimensions (W x D x H): approx. 95.5 x 36.7 x 51 cm
• Weight : approx. 15.3kg
• Colour: Phenol Brown
• Made in Germany
• Short PAR 56 Case
• 151 x 10 mm Highpower LEDs
• Controlled by DMX 512 (Dip switch on the rear panel)
• RGB Colour mixing via DMX or standalone mode
• 3-Pin DMX Input and Output
• Power Consumption: max. 15 Watt
• Sound-to-light function via DMX as well as Stand-alone
• With bracket
• Dimensions: 270 x 225 x 190 mm
• Colour: Black
• Standard C-Clamp
• For 42-52 mm tubes
• Load bearing capacity up to 50 kg
• Weight : 0.36kg
• With M10 screws
• TÜV approved
• With truss protection in front of the screw
• Dimensions: 170 x 90 x 25 mm
• Incl. mounting screw with wing nut
