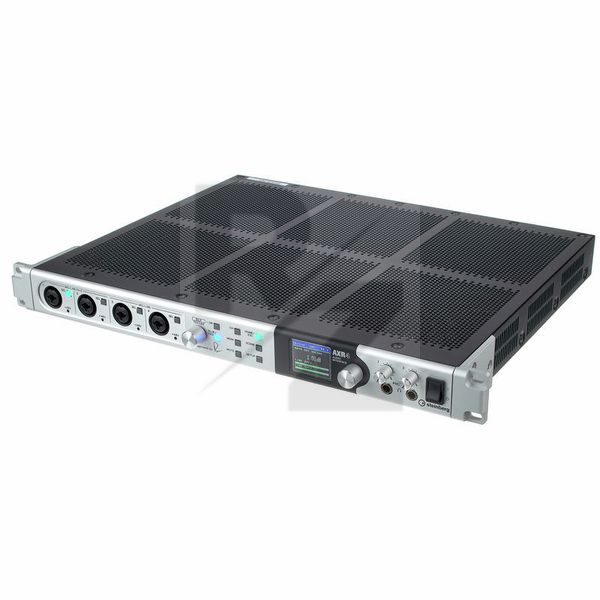

Steinberg AXR4U

Technical Data

• Manufactured by Steinberg
• Released in 2020
• Average price : $2438
• 28 x 24 Channels
• 32-Bit integer/384 kHz recording and playback
• 4 x AXR hybrid microphone preamp with Rupert Neve Designs SILK emulation
• SSPLL technology for extremely low jitter
• DSPX chip and dspMixFx technology for latency-free monitoring with DSP-powered effects
• 28 x 24 Matrix mixer
• LCD display
• +48 V Phantom power
• 2 x Mic/Line/Instrument inputs: XLR/Jack 6.3 mm combo
• 2 x Mic/Line inputs: XLR/Jack 6.3 mm combo
• 8 x Line inputs: 6.3 mm Jack
• 8 x Line outputs: 6.3 mm Jack
• 2 x ADAT/ S/PDIF inputs and outputs
• AES/EBU Sub-D25
• 2 x Stereo headphone outputs: 6.3 mm Jack
• MIDI input and output
• USB-C connectivity
• BNC Word Clock input and output
• Power supply connector
• Format: 19"/1U
• Dimensions : 480mm x 45mm x 378mm
• Weight : 4.6kg
• Includes Cubase AI with full 32-bit support
