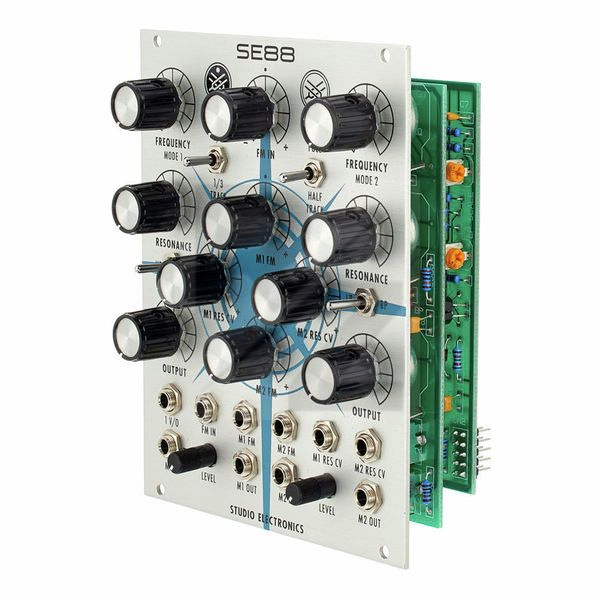

Studio Electronics SE88 Filter

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Studio Electronics
Released in 2016
Average price : $487
Voltage controlled multimode double filter, modelled on the CS80
12 dB/Oct
Variable module with extensive tonal possibilities
Adjustable in 2x frequency, 2x resonance, 3x frequency CV, 2x resonance CV, 2x output
Filter 1: HP/BR, tracking 1/3-2/3
Filter 2: LP/BP, tracking full-half
Inputs: 2x audio, 2x frequency CV, 2x resonance CV, 1 V/O, FM IN
Outputs: 2x audio
Width: 20 TE / HP
Depth: 40 mm
Power consumption: +42 mA (+12 V) / -42 mA (-12 V)
