Studio Electronics SEM Filter

Eurorack Module

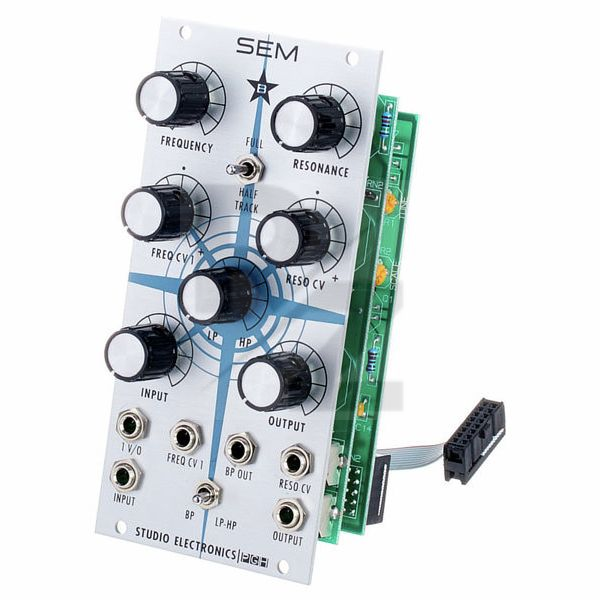

Image Studio Electronics SEM Filter

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by Studio Electronics
  • Released in 2016
  • Average price : $393
  • Voltage controlled state variable filter
  • 12 dB/Oct
  • Adjustable frequency, resonance, LP-HP, frequency CV1, resonance CV, input and output
  • Switchable filter tracking for full/half and filter modes BP/LP-HP
  • Inputs: Audio, 1 V/O, frequency CV 1 and resonance CV
  • Outputs: Main output, BP out
  • Width: 12 TE / HP
  • Depth: 40 mm
  • Power consumption: +32 mA (+12 V) / -32 mA (-12 V)
