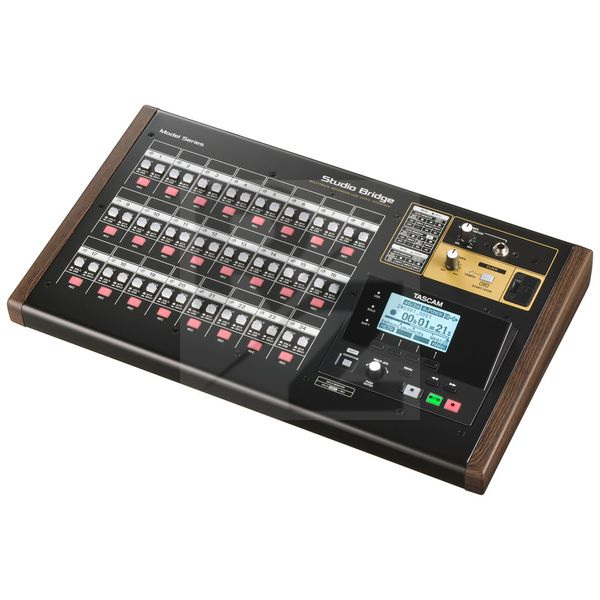

Tascam Studio Bridge

24-Track Audio Recorder and USB Audio Interface

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Tascam
Perfect for use with analogue 8 bus mixing consoles
24 Analogue audio inputs and outputs for line level, each via three D25 connectors (Tascam standard)
Built-in USB audio interface with 24 inputs and outputs
Built-in USB MIDI interface with MIDI inputs and outputs
DAW control for transport and record-arm via HUI/MCU
Special settings field with level display (virtual meter bridge)
Auto monitor function
Punch recording on up to 10 tracks
Track Swap function
Recording format: WAV (BWF format) 44.1 / 48kHz, 16-bit / 24-bit
Stores recordings on SD cards up to 512 GB (SDXC)
Output of MIDI Timecode (MTC) and MIDI Clock with Song Position Pointer (SPP)
Dimensions : 446.5mm x 114.6mm x 269.5mm
Weight : 4.5kg
24 Line inputs Sub-D25
24 Line outputs Sub-D25
Headphone and monitor output: 6.3 mm jack
Audio output for metronome click: 6.3 mm jack
Foot switch pedal input: 6.3 mm jack
MIDI in/out: 5-pin DIN
USB-B port
SD card slot
