Tegeler Audio Manufaktur VTRC Recording Channel

Recording Channel

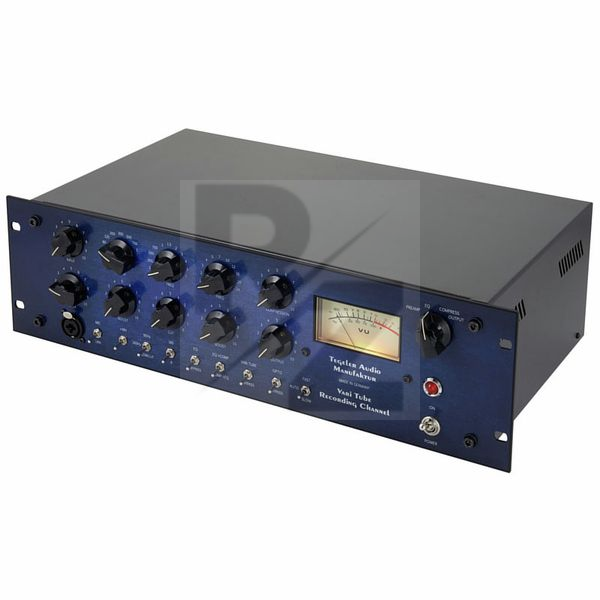

Image Tegeler Audio Manufaktur VTRC Recording Channel

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

I really like its dyeing

I have been using it for a year and it has been very helpful in my work. The compression and EQ in the early stages of recording vocals are very useful, and its electronic tube sound is also very pleasant to listen to

Technical Data

  • Manufactured by Tegeler Audio Manufaktur
  • Released in 2011
  • Average price : $2183
  • Tube device (4 triodes)
  • Class-A circuit
  • Frequency range: 20 - 20,000 Hz +/- 1.5 dB
  • Microphone preamp: Microphone input with transformer / 48V / phase
  • True 48V phantom power
  • Phase switch
  • High-impedance instrument input (100 kOhm)
  • Character changeable from clean to fat
  • Equalizer: Low-cut filter: 80-160 Hz
  • Lower-mid boost: 200-300-500-700-1000 Hz
  • Mid-cut: 200-300-500-700 Hz 1-1,5-2-3-4-5-7-9 kHz
  • High boost: 1,5-2-3-4-5-7-10-12-16-20-24 kHz
  • Compressor: Opto compressor
  • Vari tube compressor (based on the Vari μ principle)
  • Soft-Knee characteristics
  • Program-adaptive attack and release timing
  • Balanced input and output
  • Internal power supply with high-quality toroidal transformer
  • Height (H / W / D): 132 (3U) x 483 x 250 mm
