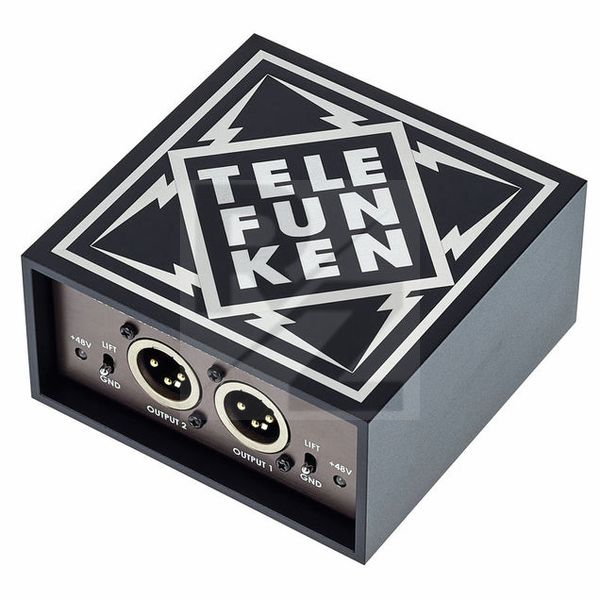

Telefunken TDA-2
Active Stereo DI Box
Technical Data
- Manufactured by Telefunken
- Released in 2017
- Average price : $487
- OEP / Carnhill transformer
- Discrete Class-A-FET circuit
- Power supply with +48 V phantom power with LED indicator
- Power consumption: 3.8 mA
- Switch for pad -15 dB
- Switch for ground lift
- Solid aluminium construction
- WIMA and Nichicon capacitors
- Input: 6.3 mm jack (per channel)
- Outputs: XLR & 6.3 mm jack (Thru) (per channel)
- Metal film resistors 1% 1/4W
- Frequency range: 20 Hz - 70 kHz, ± 2 dB
- Input impedance: 1 MΩ
- Output impedance: <10 Ohm
- Maximum input level: >1 dBV (without pad), 17 dBV (with pad)
- Dimensions : 100mm x 50mm x 100mm
- Weight : 578g
- Made in the UK
