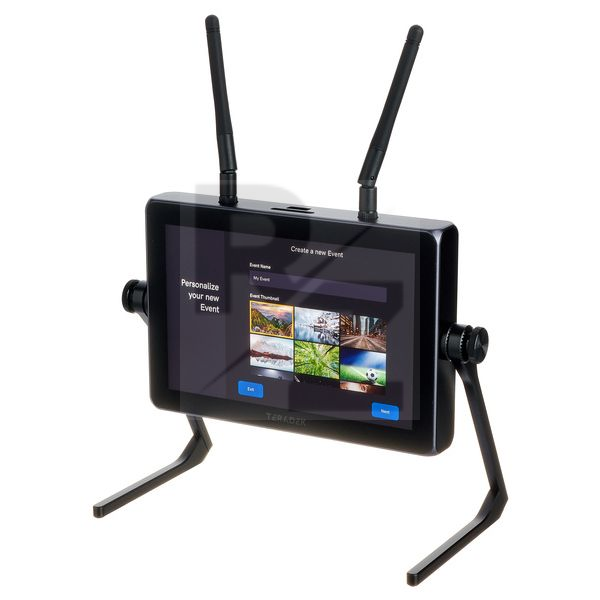

Teradek Wave

Technical Data

• Manufactured by Teradek
• Released in 2021
• Average price : $1170
• Serves as an encoder, creates events, handles network bonding, multistreaming, handles recording and streams in AVC/H.264
• Compatible with YouTube, Facebook, Vimeo, Wowza and any other RTMP(S) platform
• Video quality: up to 1080p60
• Onboard recording
• Wave app allows monitoring of a stream on a mobile device
• User interface: FlowOS (specially created for Wave) - with smart event creator
• Live monitoring of video and stream settings and analysis tools
• Multicast streaming possible (a Sharelink subscription is required)
• Two power options for redundant power supply: hotswappable Sony L-batteries and USB-C connection
• Can be mounted either on the camera (1/4''-20 threaded holes) or on the work surface with the supplied stand
• Robust aluminium housing (with ABS plastic parts)
• 7" Touch screen display
• Brightness (display): 1000 nits (daylight capable)
• Video input: 1x HDMI type-A
• Supported input resolutions: 1080p, 23.98/24/25/29.97/30/50/59.94/60. 1080i 50/59.94/60
• 720p 50/59,94/60
• Supported video bitrates: 250 kbit/sec to 15 Mbit/sec
• Supported resolutions: 1080p, 720p, 480p, 360p, 240p
• Supported frame rates: 10, 14, 20, 25, 30, 50, 60
• Connectivity: WiFi 6
• Gigabit Ethernet (10/100/1000 Base-T)
• Mobile: 2 x USB 2.0 (for LTE modems (sold separately))
• Cellular Bonding
• Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
• Video transport protocols: RTMP(S)
• Airmix
• Audio input: embedded HDMI (2-channel), analogue 3.5 mm audio input
• Audio output: 3.5 mm TRRS (headphones)
• Audio compression: AAC-LC
• Supported audio bitrates: HD (256 kbit/sec), High (192 kbit/sec), Medium (128 kbit/sec), Low (96 kbit/sec), Mobile (48 kbit/sec)
• Dimensions: 178.2 x 121.5 x 25.7 mm
• Weight : 680g
