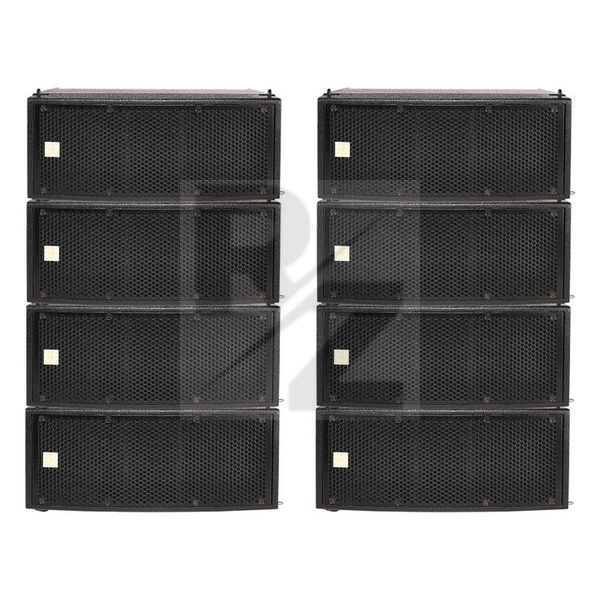

the box pro A 8 LA Line Array Basic Set

Technical Data

• Manufactured by The Box Pro
• Released in 2018
• Average price : $14134
• Active Line Array Module
• Assembly: 2x 8" and 1.4"
• Eighteen sound transducer made in Italy
• 950 W + 350 W Class D amplifier with SMPS
• Frequency response: 85 - 18,000 Hz (+ - 3 dB)
• Beam angle (averaged): 100 ° x 10 ° (horizontal / vertical)
• Maximum level (1m): 134 dB
• Internal DSP with 4 presets
• SHARC processor
• RJ45 input and output (EtherCon) for control via PRONET software
• XLR input and output
• Power twist input and output
• Dimensions : 589mm x 266mm x 516mm
• Weight : 27.5kg
• Made in Europe
• Flying Frame
• For A8 LA Line Array
• Up to 12 elements possible
• Dimensions: (W x H x D) 584 x 138 x 788 mm
• Weight : 7.5kg
• Shackle
• Long version
• Designed for flying frame A10LA (# 313502)
• Stainless steel shackle with 31 mm opening
• Bolts: 16 mm
• Load-bearing capacity: 2.75 tonnes
• Breaking point: 12 tonnes
• CAT6e Cable
• Length: 0.5 m
• Durable and flexible cable for use live, in the studio or for installations
• 2x RJ45 Yongsheng plug (Brand of Neutrik)
• For D-Format sockets
• 4-Pair 23 AWG CAT6 SFTP cable
• Conductor diameter: 0.565 mm
• Conductor material: Pure copper
• 7 mm PVC jacket
• Colour: Black
• Professional microphone cable
• Length: 0.5 m
• Black Rean XLR plug (made by Neutrik)
• Incl. hook and loop fastener
