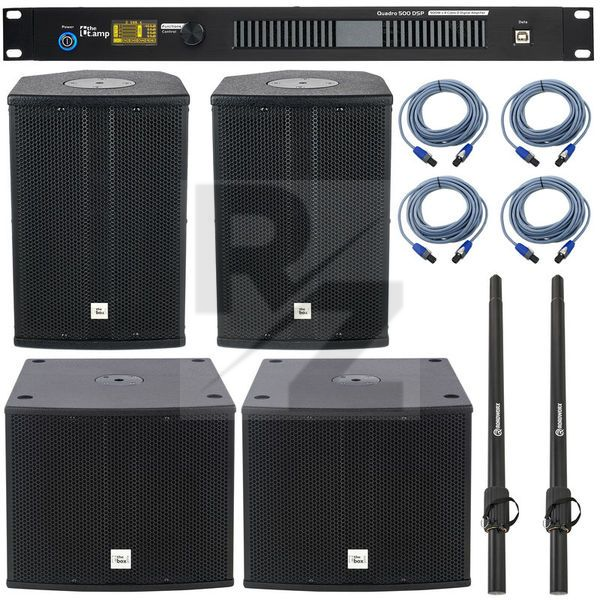

the box pro Achat 108CX/112Sub Quadro Set

Technical Data

• Manufactured by The Box Pro
• Released in 2020
• Average price : $1884
• 4-Channel Digital Power Amplifier
• Class D
• Power: 4x 500 W at 4 Ohm, 4x 250 W at 8 Ohm
• Built-in DSP
• 4 XLR inputs
• 4 Speaker twist outputs
• Format: 19" / 1 U
• Dimensions: 483 x 460 x 44 mm
• Weight : 8.0kg
• 12" Subwoofer
• Power rating: 350 W RMS / 1400 W peak
• Impedance: 4 Ohm
• SPL: 124 dB max
• Frequency range: 45 - 250 Hz
• Connectors: 2x SPK mounting sockets
• Stand flange M20
• Integrated crossover
• Dimensions: 450 x 380 x 456 mm
• Weight : 17kg
• Developed in Germany
• Loudspeaker
• Powerful coaxial neodymium speaker
• 8" Mid / bass speakers and 1" tweeter
• Multifunctional housing
• Power rating: 140 W @8 Ohm RMS, 560 W Peak Power
• Impedance: 8 Ohm
• Frequency range: 80 Hz to 20 kHz
• Dispersion: 90° Radial
• Black textured finish
• Connectors: 2 x Speaker Twist NL4
• Speaker stand flange mount
• M10 Rigging points
• Dimensions: 248 x 264 x 370 mm
• Weight : 8kg
• Developed in Germany
• Professional Speaker Cable
• Speakon Speaker Twist connector on each end
• Cross-section: 2 x 2.5 mm²
• 2-pin NEUTRIK Speakon Speaker Twist connector
• Length: 10 m
• Colour: Grey
• Not suitable for active speakers
• Not suitable for active speakers
• Distance rod
• Length approx. 0.88 m to 1.36 m
• Height adjustment with safety splint
• Upper end: 35 mm
• Lower end suitable for 35 mm and M20 mountings
• Weight : 1.2kg
• Colour: Black
