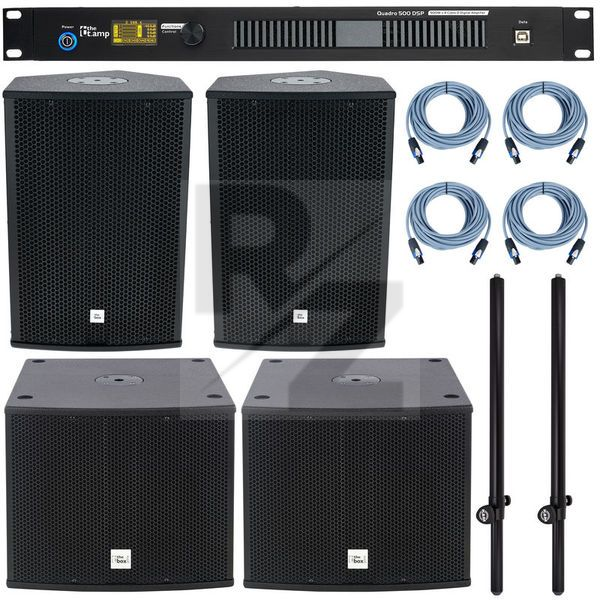

the box pro Achat 110/112 Quadro Set

Technical Data

• Manufactured by The Box Pro
• Released in 2020
• Average price : $2023
• 4-Channel Digital Power Amplifier
• Class D
• Power: 4x 500 W at 4 Ohm, 4x 250 W at 8 Ohm
• Built-in DSP
• 4 XLR inputs
• 4 Speaker twist outputs
• Format: 19" / 1 U
• Dimensions: 483 x 460 x 44 mm
• Weight : 8.0kg
• Full-Range Speaker
• Equipped with: 10" neodymium bass and 1" compression driver (tweeter with 1 3/8" voice coil)
• Multifunctional housing
• Rated power: 250 W RMS / 1000 W Peak
• Impedance: 8 Ohm
• Sound pressure: 124 dB max
• Frequency range: 70 Hz - 20 kHz
• Dispersion: 90° x 60°
• Black structure lacquer
• Flange mount for stand
• M10 fly points
• Dimensions: 300 x 450 x 290 mm
• Weight : 11kg
• Developed in Germany
• 12" Subwoofer
• Power rating: 350 W RMS / 1400 W peak
• Impedance: 4 Ohm
• SPL: 124 dB max
• Frequency range: 45 - 250 Hz
• Connectors: 2x SPK mounting sockets
• Stand flange M20
• Integrated crossover
• Dimensions: 450 x 380 x 456 mm
• Weight : 17kg
• Developed in Germany
• Distance Rod
• Steel tube combination to connect satellite systems
• Load bearing capacity up to 35 kg
• With M20 threaded bolts
• Adjustable height from 905 to 1450 mm
• Colour: Black
• Professional Speaker Cable
• Length: 10 m
• Cross section: 2 x 2.5 mm²
• Speaker Twist - Speaker Twist
• NEUTRIK Speaker Twist connectors
