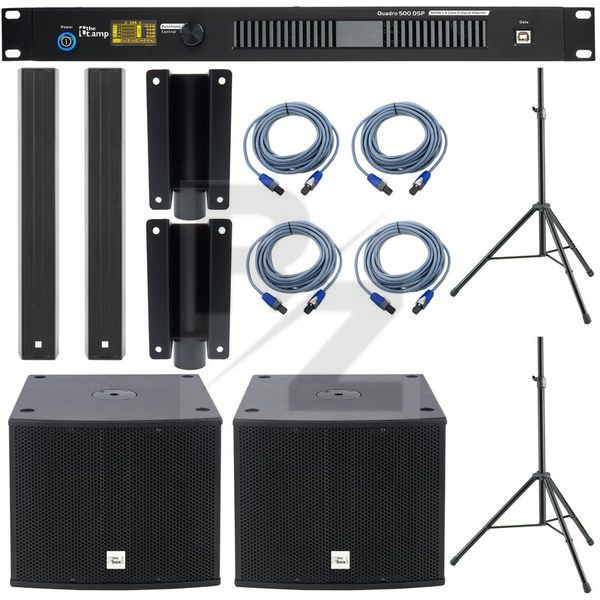

the box pro Achat 804/112 Quadro Gala Set

Technical Data

• Manufactured by The Box Pro
• Released in 2020
• Average price : $2378
• 4-Channel Digital Power Amplifier
• Class D
• Power: 4x 500 W at 4 Ohm, 4x 250 W at 8 Ohm
• Built-in DSP
• 4 XLR inputs
• 4 Speaker twist outputs
• Format: 19" / 1 U
• Dimensions: 483 x 460 x 44 mm
• Weight : 8.0kg
• Speaker
• Equipped with: 8 x 4" Bass & 1" BMS line driver
• Line source housing (column)
• Power rating: 300 W RMS/1200 W Peak
• Impedance: 4 Ohm
• Max. sound pressure level (SPL): 124 dB
• Frequency range: 60 Hz - 20 kHz
• Coverage pattern: 150° x 30°
• Connections: 2 x NL4 and binding posts
• Colour: Textured black
• Dimensions : 164mm x 1138mm x 233mm
• Weight : 16.7kg
• Developed in Germamy
• 12" Subwoofer
• Power rating: 350 W RMS / 1400 W peak
• Impedance: 4 Ohm
• SPL: 124 dB max
• Frequency range: 45 - 250 Hz
• Connectors: 2x SPK mounting sockets
• Stand flange M20
• Integrated crossover
• Dimensions: 450 x 380 x 456 mm
• Weight : 17kg
• Developed in Germany
• Speaker Stand
• Standard aluminium speaker stand
• Tube diameter: Ø 35 mm
• Height adjustable with clamp screw
• Additional push button for secure hold
• Extension tube diameter 35 mm
• TÜV approved up to 40 kg centric load
• Weight : 3.2kg
• Adjustable height: 1430 - 2240 mm
• Colour: Black
• Professional Speaker Cable
• Speakon Speaker Twist connector on each end
• Cross-section: 2 x 2.5 mm²
• 2-pin NEUTRIK Speakon Speaker Twist connector
• Length: 10 m
• Colour: Grey
• Not suitable for active speakers
• Not suitable for active speakers
• Stand Flange
• Compatible with Achat 804
