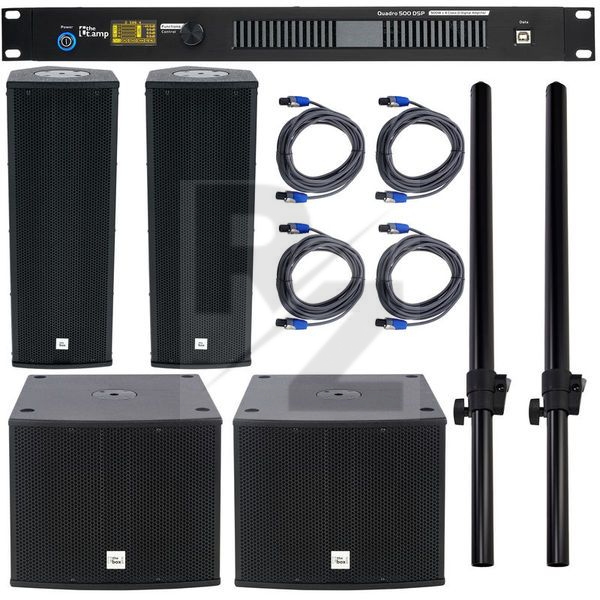

the box pro Achat Quadro Acoustic Set

Technical Data

• Manufactured by The Box Pro
• Released in 2020
• Average price : $1706
• 4-Channel Digital Power Amplifier
• Class D
• Power: 4x 500 W at 4 Ohm, 4x 250 W at 8 Ohm
• Built-in DSP
• 4 XLR inputs
• 4 Speaker twist outputs
• Format: 19" / 1 U
• Dimensions: 483 x 460 x 44 mm
• Weight : 8.0kg
• 12" Subwoofer
• Power rating: 350 W RMS / 1400 W peak
• Impedance: 4 Ohm
• SPL: 124 dB max
• Frequency range: 45 - 250 Hz
• Connectors: 2x SPK mounting sockets
• Stand flange M20
• Integrated crossover
• Dimensions: 450 x 380 x 456 mm
• Weight : 17kg
• Developed in Germany
• Small Speaker
• Equipped with: 2 x 6" Bass and 1" compression tweeter
• Power rating: 250 W RMS / 1000 W peak
• Impedance: 8 Ohm
• Max SPL: 122 dB
• Frequency range: 70 Hz - 20 kHz
• Dispersion: 90° x 90°
• Connectors: 2 x NL4 and binding posts
• 36 mm stand flange mount
• M10 rigging points
• Black textured lacquer
• Dimensions: 200 x 570 x 220 mm
• Weight : 12kg
• Colour: Black
• Developed in Germany
• Distance Tube
• For satellite system
• Made of metal
• Adjustable from 935 - 1485 mm
• M20 for attachment to corresponding subwoofers
• Diameter: 35 mm
• Max load: 35 kg
• Weight : 2.1kg
• Colour: Black
• Made in Germany
• Professional Speaker Cable
• Length: 10 m
• Speaker Twist - Speaker Twist
• Neutrik Speaker Twist connectors
• Cross-section: 2 x 1.5 mm²
• Colour: Grey
