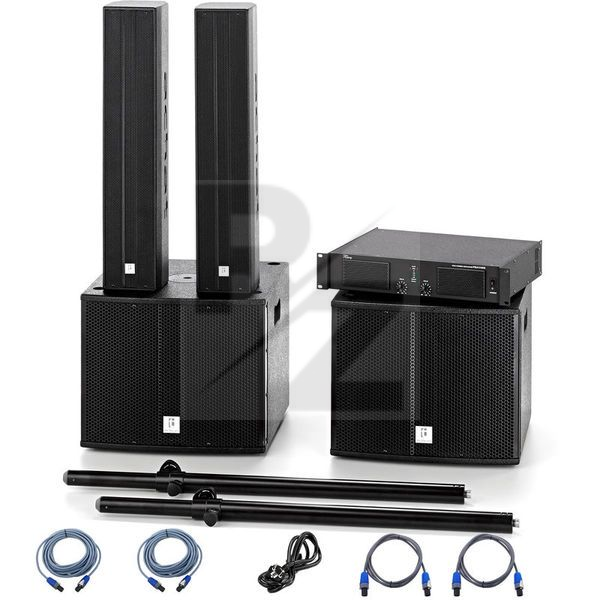

the box pro Gala Set 404/112

Technical Data

• Manufactured by The Box Pro
• Released in 2010
• Average price : $1828
• Speaker
• Equipped with: 4x 4" Bass, 1" BMS line driver
• Line source housing (column)
• Rated power: 150 W RMS, 600 W Peak
• Impedance: 8 Ohm
• Sound pressure level: 109 dB/121 dB (peak)
• Frequency response: 160 Hz - 20 kHz
• Coverage pattern: 150° x 30°
• Stand flange mount: 36 mm
• Connections: 2x NL4 and screw terminals
• Colour: Textured black
• Dimensions: 144 x 166 x 692 mm
• Weight : 8kg
• Developed in Germamy
• Amplifier with Switched-Mode Power Supply
• 2x 670 W/ 4 Ohm
• 2x 450 W/ 8 Ohm
• 2x 800 W/ 2 Ohm
• 1x 1380 W bridge at 8 Ohm
• 1x 1600 W bridge at 4 Ohm
• XLR input and output
• Speaker Twist output
• Protected circuit design: Audio limiter, temperature und short circuit
• Dimensions: 484 x 350 x 97 mm
• 19"/ 2 RU
• Weight : 10.4kg
• 12" Subwoofer
• Power rating: 350 W RMS / 1400 W peak
• Impedance: 4 Ohm
• SPL: 124 dB max
• Frequency range: 45 - 250 Hz
• Connectors: 2x SPK mounting sockets
• Stand flange M20
• Integrated crossover
• Dimensions: 450 x 380 x 456 mm
• Weight : 17kg
• Developed in Germany
• Distance Rod
• Steel tube combination to connect satellite systems
• Load bearing capacity up to 35 kg
• With M20 threaded bolts
• Adjustable height from 905 to 1450 mm
• Colour: Black
• Professional Speaker Cable
• Speakon Speaker Twist connector on each end
• Cross-section: 2 x 2.5 mm²
• 2-pin NEUTRIK Speakon Speaker Twist connector
• Length: 10 m
• Colour: Grey
• Not suitable for active speakers
• Not suitable for active speakers
• Professional Speaker Cable
• Length: 2 m
• Speaker Twist - Speaker Twist
• Neutrik connectors
• Cross-section: 2 x 1.5 mm²
• Colour: Grey
