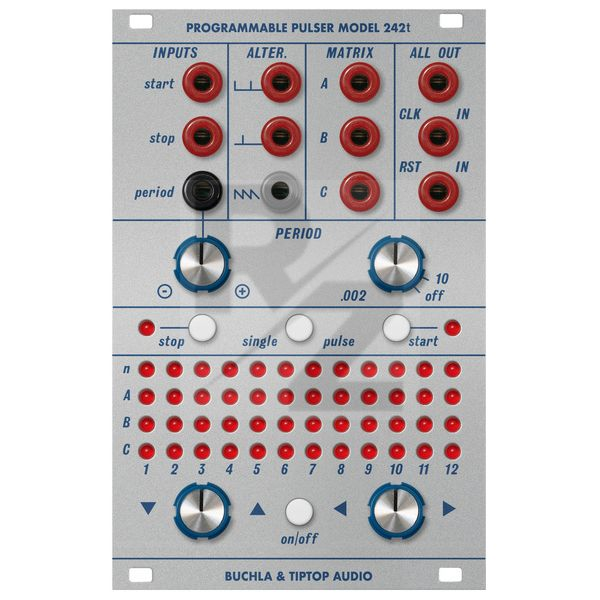

Tiptop Audio Model 242t

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Tiptop Audio
Programmable pulser
3-Channel trigger and clock generator
Three channels (A, B, C) with individually programmable trigger pattern (1-12 steps)
Buttons for Start, Stop and Single Pulse
Internal clock with tempo control, CV input with bipolar attenuator and clock output (all out)
External clock and reset input
Inputs for start and stop
Matrix outputs (A, B, C)
Two alternating pulse outputs and sawtooth output
Power requirement: 130 mA (+12V) / 19 mA (-12V)
Width: 16 HP
Depth: 45 mm
