Tiptop Audio Z2040

Filter Module

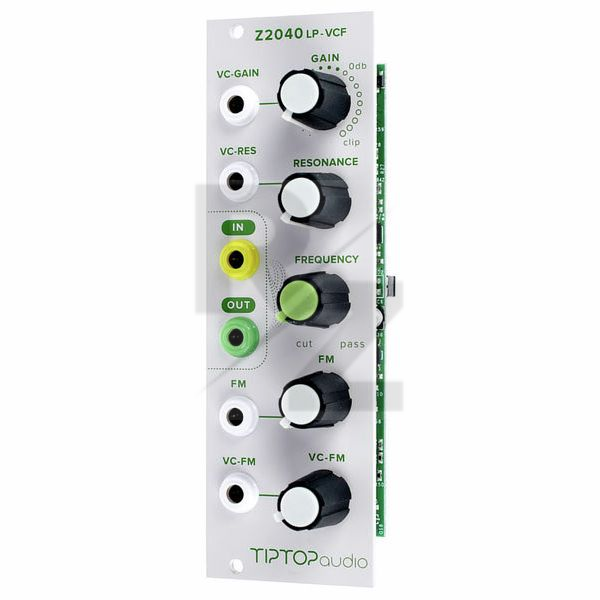

Image Tiptop Audio Z2040

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by Tiptop Audio
  • Released in 2018
  • Average price : $228
  • 4 dB 4-pole low pass VCF
  • Redesign of the Prophet 5 Rev 2 Low Pass Filter
  • Voltage controllable gain and resonance
  • Self-oscillating
  • FM input for filter sweeps
  • VC-FM input for controlling the FM modulation depth
  • Voltage controlled VCA that can be switched in front of or behind the filter
  • Width: 8 HP
  • Depth: 42 mm
  • Power requirements: +20 mA (+12 V) / -20 mA (-12 V)
