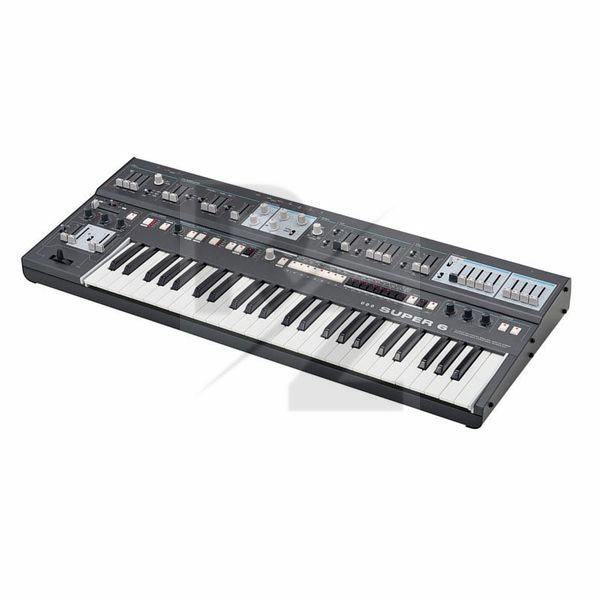

UDO Audio Super 6 Black

Technical Data

• Manufactured by UDO Audio
• Released in 2020
• Average price : $3280
• Binaural analog signal path
• 2 Digital oscillators (FPGA based)
• Oscillator 1 with Sine, Sawtooth, Square, Triangle, Noise and Wavetable
• Oscillator 2 with Sine, Sawtooth, Square, Triangle, Noise and Pulse-Width Modulation
• Oscillator synchronization and cross modulation available
• Analog 24 dB low-pass filter with resonance
• Static high-pass filter and switchable overdrive
• Analog VCA
• 2 ADSR Envelopes
• LFO with extended frequency range (0.05 Hz - 20 kHz) and keyboard tracking for FM sounds
• Flexible modulation matrix for further sound design possibilities
• Arpeggiator and 64-step sequencer with MIDI sync
• Delay and Chorus effects
• Control section with assignable Bender
• Portamento fader and Octave elector
• 49-Key Fatar keyboard with Velocity and Aftertouch
• Stereo output: 2 x 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• Audio input: 1 x 6.3 mm jack
• MIDI: In/Out/Thru
• Sustain and Expression pedal inputs: 2 x 6.3 mm jack
• USB-B port
• Dimensions : 830mm x 350mm x 90mm
• Weight : 8kg
• Colour: Black
