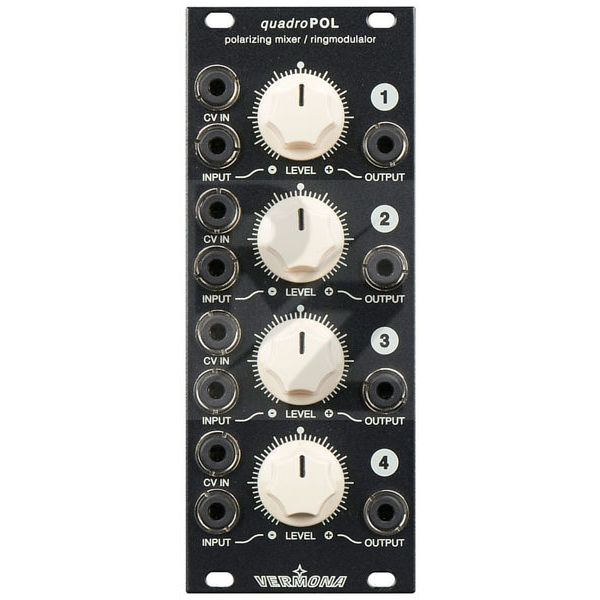

Vermona Modular quadroPOL
Eurorack Module
Latest User Reviews
Functional beast
This module is a great tool once you know how to use it. It can be a vca, mixer, inverter, ring modulator, and an attenuator. Great size, nice layout. The only problem is, when fully suppressed there seem to be a small amount of bleed, so it would not be a good choice if it was to be the only vca in your system, but it's not a massive problem as the bleed is a very low level and could therefore be gated very easily or even just not noticed at all.
Well built utility module
Lots of features in a small size and very useful. Build quality is great
Technical Data
- Manufactured by Vermona Modular
- Released in 2018
- Average price : $348
- 4-Channel multi-function module
- Each channel can be used as manual attenuator or as an inverter
- Without signal an adjustable voltage is present at the output (-5V to + 5V)
- VCA functionality when using the CV input, whereby a positive voltage opens the attentuator into a positive direction, and an inversion causes negative voltages
- Linear control characteristics of the CV inputs
- Ring modulator functionality when using an audio signal at the CV input
- Generate a voltage-controlled mixer with a maximum of four channels by interconnecting jumpers on the PCB (normalisation of the outputs of adjacent channels to the input of the one below)
- Power consumption: -12V 35 mA, +12V 45 mA
- Dimensions (W x D): 10 HP x 30 mm
