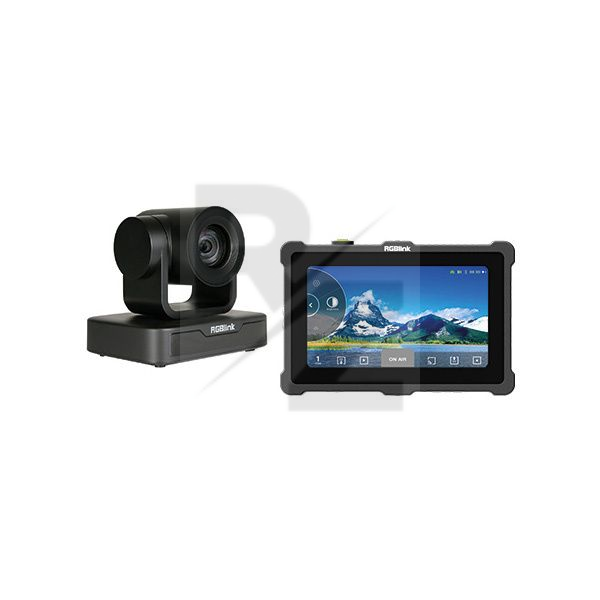

Video Monitoring RGBLink EcoSystem PTZ 10x & Stream

Technical Data

• Manufactured by Video Monitoring
• Released in 2022
• Average price : $974
• Consisting of RGBlink TAO 1Pro monitor/recorder and USB PTZ camera 10x optical zoom
• 70° Wide angle lens
• Low noise and high SNR
• Pan and tilt control
• Low-power sleep functionality
• Auto-focus technology
• Up to 255 presets
• 1/4" tripod thread on the underside
• Video connection: USB 2.0 (1xUSB-A)
• Network connections: RS232 (2xDIN 8), RS485 (1x2 Pin Terminal Connector)
• Power supply: 1x HEC3800 DC socket
• Optical zoom: 10x f = 4.34~41.66 mm
• Angle of view: 8.8° ~ 70°
• AV: F1.85 ~ F2.43
• Digital zoom: 10x
• Minimum illumination: 0.5 lux (F1.8, AGC ON)
• DNR: 2D & 3D DNR
• White balance: Auto/Manual/One Push / 3000K - 7000 K
• Focus: Auto / Manual / OnePush: Exposure control: Auto/Manual
• BLC: On/Off
• Video settings: Brightness / Colour / Saturation / Contrast / Sharpness / B|W mode / Gamma curve
• SNR: >55 db
• Effective pixels: 2.07 m, 16:9
• Angle of motion: -170° ~ +170° / '-30° ~ +90°
• Speed: 0.1 ~ 60°/s, 0.1 ~ 30°/s
• Presets: Pan: 60°/s, Tilt: 30°/s, up to 255 preset positions (10 selectable on the remote control)
• Video compression: MJPG, H.264, H.265 format
• Output resolution: 720p@25/30, 1080p@25/30
• Control protocol: VISCA, Pelco-D, Pelco-P
• Operating system: Windows 7, Windows 8, Windows 10, Mac osx, Linux
• USB: UVC protocol
• Input voltage: DC 12 V / 0.25 A
• Max. power: 2.5 W
• Weight : 1kg
• Dimensions: 156.8 ×112.6 ×139.5 mm
• Switcher for seamless transitions
• NDI|HX2 encoder/decoder
• Multistream for up to 4 live-streaming platforms simultaneously
• Network HD streaming (optional portrait format for smartphone optimisation)
• Recording via USB 2.0 port for up to 2TB
• 2 HDMI 1.3 inputs
• 2 USB 3.0 inputs
• 1 USB 2.0 record port
• Audio In/Out 3.5 mm
• RJ45
• LAN
• USB-C power supply
• Power supply: 9V / 2A
• Power consumption: max. 18 W
• Dimensions: 161 x 106 x 36 mm
• Weight : 350g
• HDMI
• SMPTE 720@50/60, 1080p@23/24/60
• VESA 1024x768@60, 1280x720@50/60, 1280x800@60, 1280x1024@60, 1360x768@60, 1600x1200@60, 1680x1050@60, 1920x1080@60
• HDMI
• SMPTE 720p@50/60,1080p24/25/50/60, 2160p@60
• VESA 1024x768@60, 1280x72050/60, 1280x800@60, 1280x1024@60, 1920x1080@50/60, 3840x2160@60
• Supported standards: HDMI 1.3 (Input) | 2.0 (Output), USB 3.0
• Size: 5.5" TFT
• Resolution: 1080x1920
• Picture element spacing: 0.63(H) x 0.021(W) (mm)
• Aspect ratio: 16:9
• Brightness: 450cd/m²
• Contrast: 1000:1
• Black light: LED
• Viewing angle: 80°/80°(L/R) 80°/80° (U/D)
• 1x RGBLink TAO 1 Pro
• 1x USB-C power supply unit with cable
• 1x Threaded screw for mounting
• 1x 230V to 12V power supply unit with 2.5 metre cable
• 1x IR remote control (2 x AAA batteries required)
• 1x USB 2.0 cable 2 metres
• 1x RS-232 cable 2 metres
• 1x RS-485 plug
