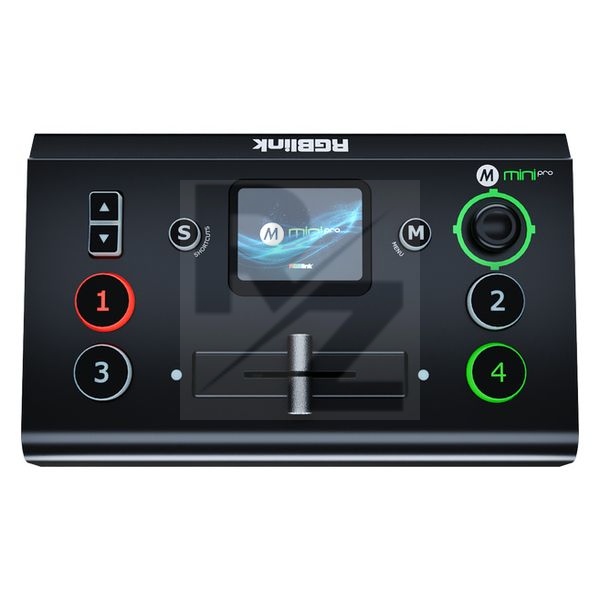

Video/AV Mixers RGBLink Mini Pro V3

Technical Data

• Manufactured by Video/AV Mixers
• Has 4 4K HDMI inputs and 2 HDMI outputs
• USB 2.0 one-key recording in exFAT or FAT32 format with a bit rate of up to 16 Mbps
• Built-in LC display for video preview and touch menu operation
• USB output supports YUY2 and MJPG formats, which can be recognised as a webcam for streaming
• Supports RTMP(S) network streaming for up to 2 platforms
• 4 HDMI 2.0 inputs (HDCP 1.4 compliance)
• Resolutions up to 4K@60
• 2 HDMI 1.3 outputs for monitoring multi-view preview, programme or AUX
• Saving and loading PTZ presets
• Retrieve presets with one click
• Mix for embedded 4-channel HDMI and external 2-channel audio
• 5-Direction joystick and toggle for controlling the PTZ camera (IP VISCA protocol supported)
• AUTO and WIPE switching mode available
• AUTO and WIPE switching mode available
• Supports APP and TAO Cloud integrated control
• Compatible with mobile devices and desktop
• Input resolutions: 1280×720p@50/60 | 1280×768p@60 |1280×1024p@60 | 1360×768p@60 | 1366×768p@60 | 1600×900p@60 | 1920×1080i@50/60 | 1920×1080p@30/50/60 | 3840×[email protected]/24/25/29.97/30/50/59.94/60
• Output resolutions: HDMI 1.3: 1280×720p@50/60 | 1920×1080p@24/30/50/60 / USB: 1280×720p@60 | 1920×1080p@24/25/30/50/60
• Video bit depth: 8 bit/10 bit/12 bit
• Colour space: RGB 8 bit | YUV 4:4:4 | YUV 4:2:2 | YUV 4:2:0
• Latency: < 3 frames
• Audio format: LPCM/2ch/24bit/16bit/48kHz
• Power supply: 1x USB-C
• Power supply compatibility USB Power Delivery (PD) 3.0
• Input voltage: PD 12V/1.5A
• Max. power: 20 W
• Dimensions: 180.6 x 112.7 x 53 mm
• Weight : 0.42kg
• Input: 4x HDMI-A
• Outout: 2x HDMI-A
• USB: 1x USB-A
• Audio input: 2x 3.5 mm mini jack
• Audio output: 1x 3.5 mm mini jack
• LAN: 1x RJ45
