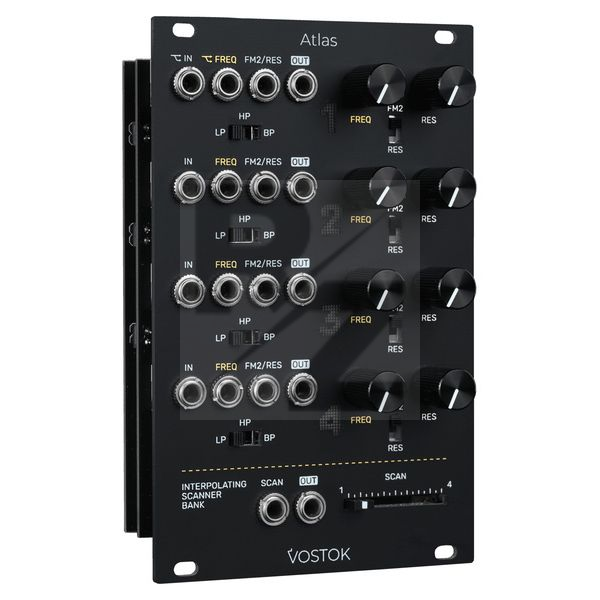

Vostok Instruments Atlas

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Vostok Instruments
4-Channel Multimode Filter
Per channel: Controls for cutoff frequency and resonance, selectable characteristics (low-pass, band-pass, high-pass), audio input and output, two CV inputs
Audio input and cutoff CV input are normalised to the next channel in each case
Scan section with crossfader, CV input and audio output allows stepless crossfading between the 4 channels
Power requirement: 170 mA (+12 V) / 170 mA (-12 V)
Width: 16 HP
Depth: 30 mm
