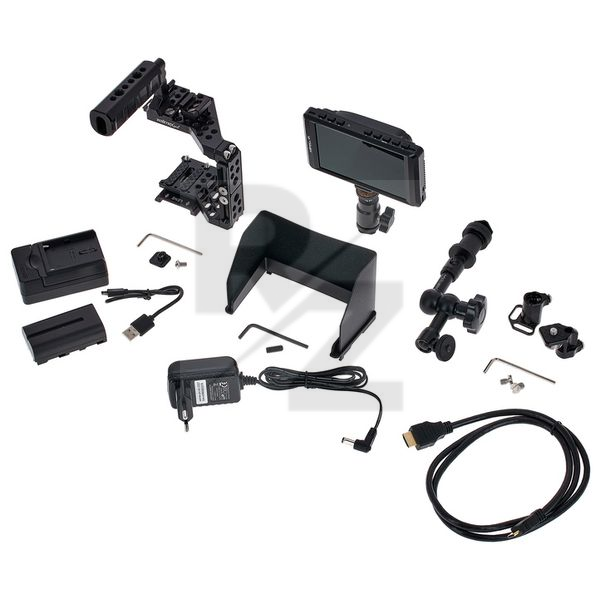

Walimex pro Advanced Movie Set

Technical Data

• Manufactured by Walimex Pro
• Released in 2022
• Average price : $706
• Consists of cage, monitor, swivel arm Magic 18, swivel arm anti-twist protection, power supply unit, charger and battery
• Flexibly adaptable for a wide range of current cameras
• Walimex pro 4.5" Camera Assist Monitor 4K IPS incl. battery for examining the camera image
• Walimex pro Swivel Arm Magic 18 for attaching the monitor to the cage and for free positioning
• Max. Load: 2 kg
• Length: 180 mm
• Threaded connection: 1/4"
• Material: Aluminium
• Colour: Black
• Weight : 195g
• Capacity: 2200 mAh
• Voltage: 7.2 - 7.4 V
• Power: 16.3 Wh
• Technology: Lithium Ion
• Dimensions: 71 x 38 x 21 mm
• Weight : 88g
• Material: Aluminium
• Width: 104 mm
• Height: 155 mm
• Depth: 72 mm
• Internal height max. /min.: 133 / 81 mm
• Rod Diameter: 15 mm
• Colour: Black
• Weight : 406g
• Dimensions: 430 x 380 x 154 mm
• Weight : 2800g
• Display Size: 4.5" / 11.43 cm
• Type: IPS
• Colour System: PAL / NTSC
• Pixel Density: 335 PPI
• Display Resolution native: 1200 x 800
• Resolution: 1280 x 800 (8-bit)
• Max. Brightness Monitor: 470 cd/m²
• Max. Contrast Monitor: 900:1
• Viewing Angle: 160° / 160° (H / V)
• Aspect Ratio: 16:10
• Backlight: LED
• Input: HDMI
• Output: HDMI, Headphone
• Input Voltage: DC 12 V, DC 7-18 V
• Power Consumption: 5 W
• Compatible Battery Models: NP-F 750, NP-F 960, NP-F 970, NP-F 990, NP-F 550
• Dimensions: 128 x 16 x 72 mm
• Weight : 170g
• Cage: 1x Aptaris Unival XL Mk II, 1x handle long with minirail, 1x hot shoe adapter, 1x rod module plate, 1x hexagonal screwdriver, 7x screws, 2x stopper, 1x L-bracket, 1x hot shoe fuse
• Monitor: 1x Walimex pro 4.5" Camera Assist Monitor 4K IPS, 1x Battery Compartment 1x NP-F (already mounted), 1x HDMI to Mini-HDMI Cable 105 cm, 1x Sunshade, black (holding frame plus aperture with Velcro connection), 1x Mini Ball Head
• Magic Arm: 1x Walimex pro DSLR Articulated Swivel Arm Magic 18, 1x Walimex pro Articulated Swivel Arm Anti-Twist
• Charger: 1x Walimex pro NP-F Charger with Micro-USB connection, 1x USB 2. 0 to Micro-USB cable 50 cm
• Power supply: 1x power supply for Walimex pro 4.5" Camera Assist Monitor 4K IPS
• Battery: 1x NP-F550 Li-Ion battery for Sony NP-F, 2200mAh
• Storage: 1x Mantona Outdoor Protective Case M+
