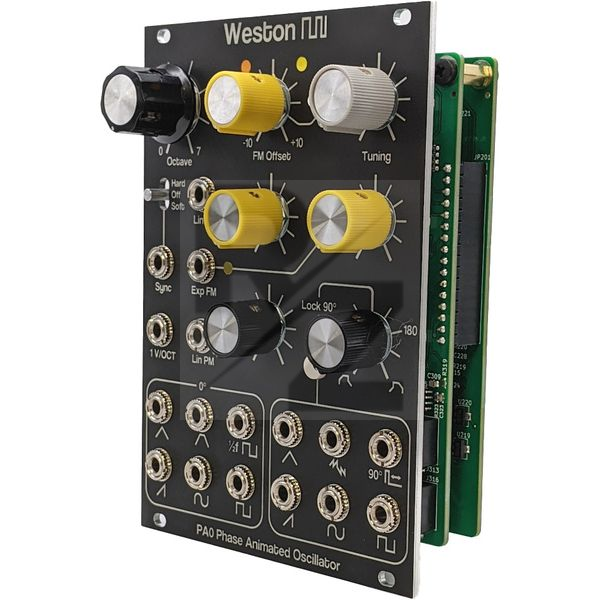

Weston Precision Audio PA0 Phase Animated Oscillator

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Weston Precision Audio
8-Step octave selector switch and control for fine tuning
Through-Zero FM with linear CV input, attenuator, FM index control and two selectable fixed index values
Exponential FM input with attenuator
6 Waveform outputs: sine, triangle, sawtooth, square and square sub-octave
Second group of 6 waveforms that can be shifted in the range from 0° to 180° and beyond
Lock switch for exact 90° phase shift
CV input with attenuator for linear through-zero phase modulation
Sync input with selector switch for hard sync, off or soft sync
Current requirement: 110 mA (+12 V) / 95 mA (-12 V)
Width: 18 HP
Deth: 25 mm
