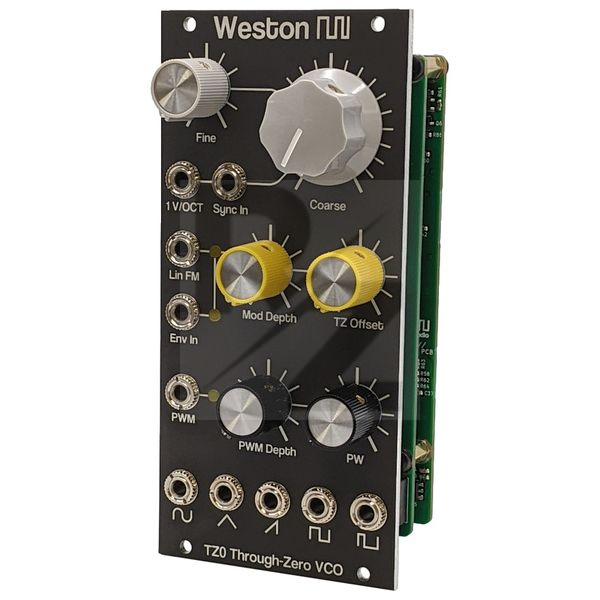

Weston Precision Audio TZ0 Thru-Zero Oscillator

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Weston Precision Audio
Analogue VCO with triangle core
Controller for coarse and fine tuning
Linear FM input with attenuator for thru-zero FM modulation, separate envelope modulation input (index VCA) and offset control
Adjustable pulse width
CV input with attenuator for pulse width modulation
Pitch CV input (1 V/oct.) and sync input
Outputs for sine, triangle, sawtooth, square and pulse
Power consumption: 85 mA (+12 V) / 70 mA (-12 V)
Width: 12 HP
Depth: 25 mm
