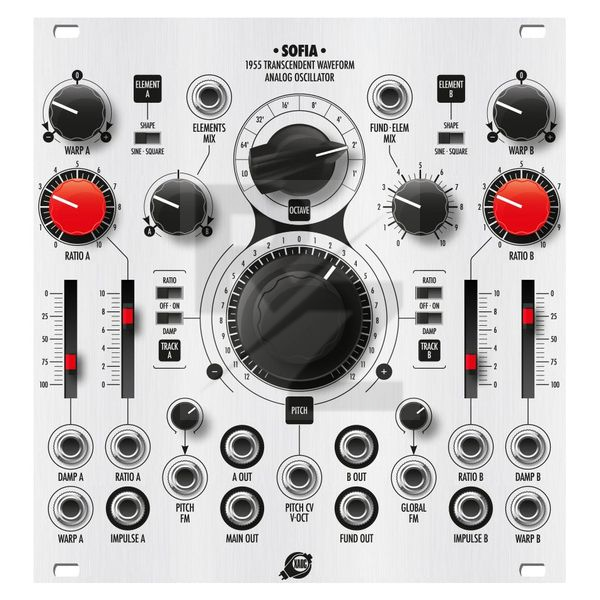

XAOC Devices Sofia

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by XAOC Devices
Released in 2022
Average price : $535
Analogue VCO for complex waveforms
Triangle-core oscillator with pitch control and octave selector switch
Two ripple elements, based on synthesis of formant sounds (FOF)
Ratio, warp, damping and waveform (sine/rectangle) are adjustable per ripple element
Element mix control with CV input
Adjustable mix of sine fundamental tone and ripple elements (with CV input)
CV inputs for all parameters
Pitch CV input (1V/oct.)
CV inputs with attenuators for Pitch FM and Global FM
Outputs for the main signal, fundamental tone, ripple elements A&B, impulses A&B (decay curve of the elements)
Current consumption: 90mA (+12V) / 80mA (-12V)
Width: 24 TE
Depth: 30 mm
