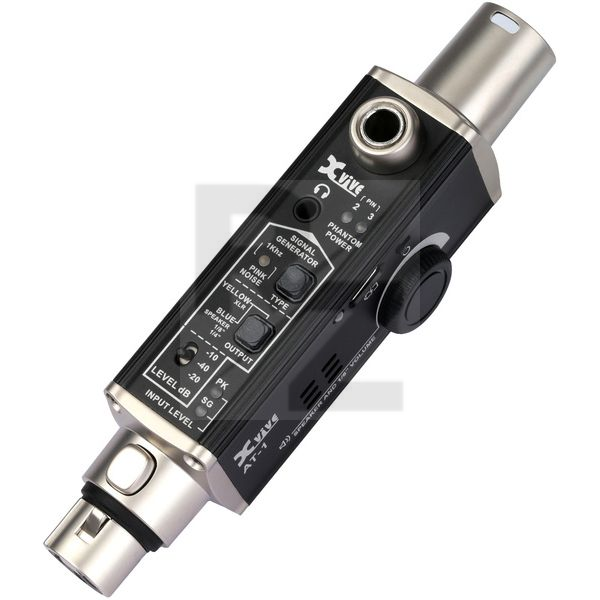

XVive AT-1 Portable Audio Tester

Compact Audio Tester

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by XVive
Suitable for testing PA speakers, effect pedals, cables, DI boxes, IEM systems, mixing consoles and other audio devices
Can perform various checks and offers five main functions
Signal generator: Outputs a 1 kHz sine wave signal or a ‘pink noise’ audio signal via the male XLR socket and 6.35 mm / 3.5 mm jack sockets
With three output level options: -10 dB, -20 dB, and -40 dB
XLR cable tester: Checks whether all three contacts of an XLR cable are working properly
XLR input measurement: Measures the input level at the female XLR socket
Phantom power test: Tests the output voltage of the phantom power supply and the correct function of the contacts
Signal monitoring via headphones or speakers: If an audio source is connected to the female XLR socket or the 6.35 mm jack input, the signal can be monitored with headphones or speakers via the 3.5 mm output
Rechargeable lithium battery
Built-in speaker
XLr inoput / output
6.35 mm input/output
3.5 mm headphone output
USB Type-C port
Dimensions: (L x W x H) 155 x 25 x 20 mm
Weight : 143g
Includes USB Type-A to USB Type-C cable, carrying case and 6.35 mm jack adapter
