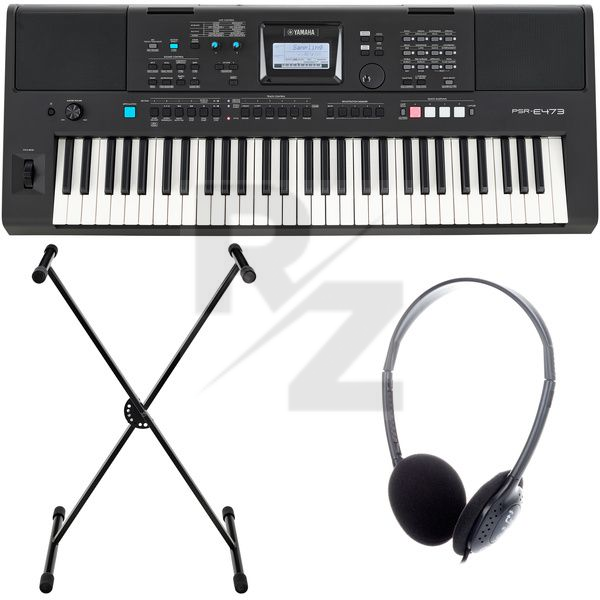

Yamaha PSR-E473 Set

Technical Data

• Manufactured by Yamaha
• Released in 2022
• Average price : $432
• Keyboard
• 61 Keys with touch response
• 820 Sounds
• 290 Styles
• 64-Voice polyphonic
• Pitch bend wheel
• Motion-effect button and 2 Live Control knobs
• GM/XGLite compatible
• Effects (Reverb, Chorus, Master EQ, DSP1: 42 types, DSP2: 12 types)
• One Touch Setting
• Style File Format (SFF) compatible
• Groove Creator (35 grooves, 5 sections)
• 30 Preset songs
• Midi Recording (5 Melody + 1 Style/Groove Creator)
• SMF format 0+1
• USB Audio Player & Recorder (Wav, 44.1 kHz, 16 bit, stereo)
• Quick Sampling (44.1 kHz, oneshot or loop, 4 user samples, sampling time approx. 9.6 seconds, sampling input: aux in, mic input, USB audio or Wav file)
• Functions: Dual, Split, Harmony (26), Arpeggio (152), Articulation, Registration Memory, Metronome, Tuning (427 - 453 Hz), Octave Keys, Melody Suppressor.
• USB to Device
• USB to Host (Midi + Audio)
• Aux input: 3.5 mm stereo jack
• Headphone output: 6.3 mm stereo jack
• Audio output: 2x 6,3 mm jack
• Microphone input with vocal effects
• Loudspeaker 2 x 6W with Mega Boost function
• Battery operation possible (6x AA, not included)
• Dimensions (WxDxH): 992 x 404 x 136 mm
• Weight : 7.0kg
• Colour: Black
• Incl. power supply unit (PA-150) and music stand
• Keyboard Stand
• With quick lock (X stand)
• Adjustable rubber supports
• Support depth: 40 cm
• Height adjustable from 50 cm (width: 87 cm) to 92 cm (width: 46 cm)
• Dimensions when collapsed: 101 x 50 x 8 cm
• Max. load-bearing capacity: 20 kg
• Weight : 2.5kg
• Colour: Black
• Stereo Headphones
• Dynamic
• Supra-aural
• Impedance: 32 Ohm
• Frequency range: 20 -20,000 Hz
• Max. sound pressure level: 106 dB
• 2 m Cable
• Includes adapter from 3.5 mm to 6.3 mm jack
