Yamaha RIO3224-D3

Digital Dante Stagebox

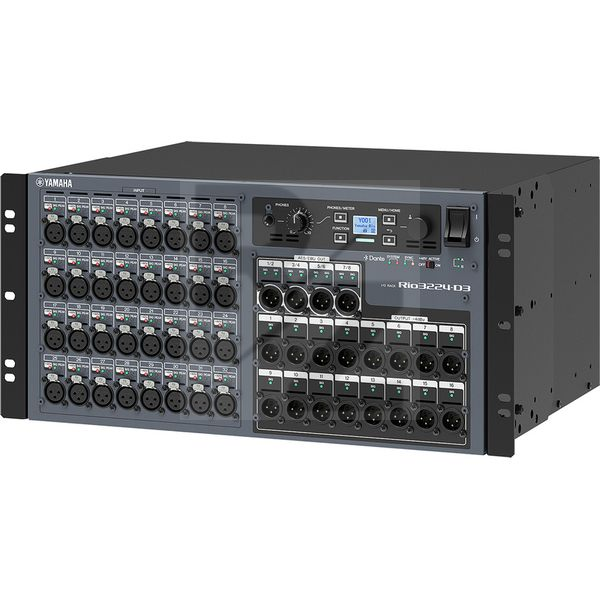

Image Yamaha RIO3224-D3

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by Yamaha
  • Analogue I/O: 32 inputs / 16 outputs
  • AES/EBU: Eight outputs
  • Dante network: 26 receive and 32 transmit channels
  • Frequency range: 20 Hz - 20,000 Hz
  • Dynamic range: 120 dB
  • Equivalent input noise: -128 dBu
  • Output noise: -88 dBu
  • Crosstalk: -100 dB INPUT/OUTPUT channels
  • Input gain: -6 dB @ 1kHz
  • Comprehensive display and local control of gain
  • Delay and other parameters
  • Headphone output for monitoring the input and output sound or the last two Dante receive channels
  • Redundant PSU
  • 5 U
  • Dimensions : 480mm x 220mm x 370mm
  • Weight : 13.2kg
