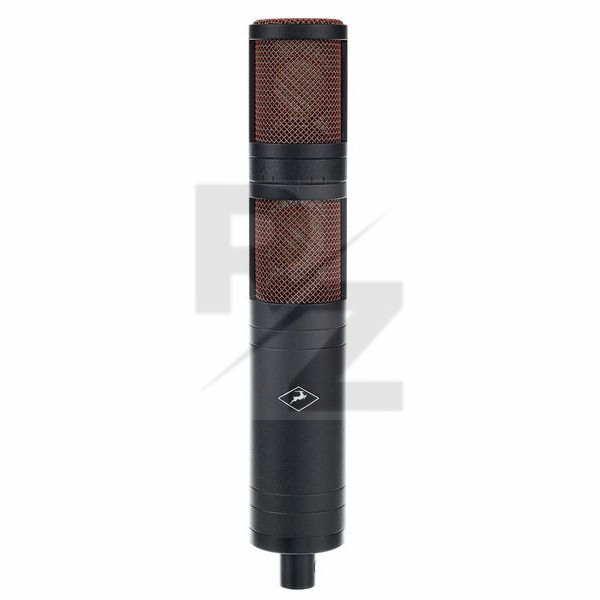

Antelope Edge Quadro

Multichannel Large Diaphragm Modelling Condenser Microphone

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Antelope
Released in 2018
Average price : $2682
Includes Edge Real-Time Modelling software for classic studio microphone emulation
Can be used with any microphone pre-amplifier and audio interface of your choice - for optimal results in terms of your sound, we recommend the Antelope Audio Interface with FPGA Real-Time Modelling
2 Double-membrane capsules with gold-coated membranes
Capsules each with selectable directional characteristics: Omnidirectional, cardioid, or bidirectional
Allows X/Y, M/S, Blumlein and 360° recordings
Upper capsule rotates freely
Low-noise and low-distortion circuit design
Requires 48 V phantom power
Frequency response: 20 - 20000 Hz
Sensitivity: -35 dB / 18 mV/Pa (-1 to +3 dB)
THD+N: 116 dB
Inherent noise: 19 dB (A)
Signal-to-noise ratio: 75 dB (A)
Output impedance: 50 Ohm @ 1kHz
5-Pin XLR connector
Dimensions: 303 x 53 mm
Weight : 770g
Includes 5 m XLR cable, holder and wooden case
Berlin 47 FT
Berlin 49T
Berlin 57
Berlin 87
Berlin 67
Berlin M103
Vienna 12
Vienna 414
Tokyo 800T
Oxford 4038
Sacramento 121R
Berlin K86
Berlin 47 TU
Berlin V563
Berlin / Halske M25
Berlin M251
Minnesota 20
Illinois 7B
The scope of the emulations is constantly being expanded
At least Core 2 Duo CPU
At least 4 GB RAM
OS X 10.11, Windows 10 or later
