ART Dualxdirect

Active Dual DI Box

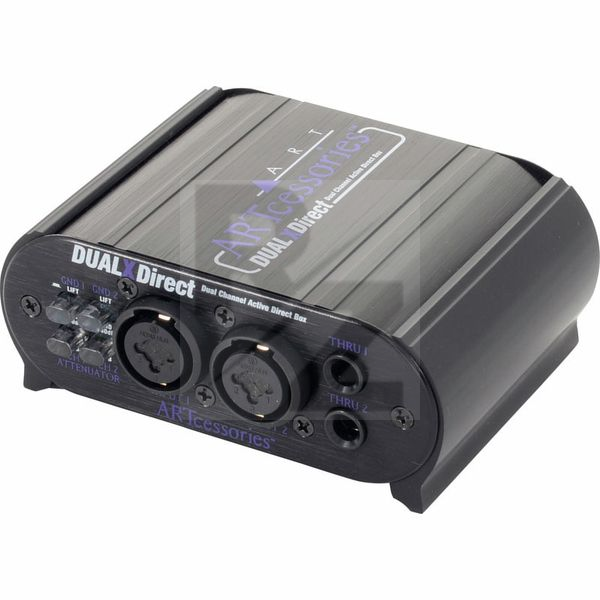

Image ART Dualxdirect

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

great on stage

My keyboardist uses this for his 6.3mm keyboard and acoustic guitar. Does the job well and no issues so far (2 yrs or so)

5 years ago

As good as it says!

This D.I box is good. it can attenuate the signal up to -30db. also when a 9v battery is being plucked in, it will ensure the stability of the balanced signal passing through.

6 years ago

I love ART products, I cannot lie.

I use this DI on live performance using an AKAI EWI USB: computer>audio card>volume pedal>ART DI>PA. It sounds fantastic. It has ground lift and a very clean and robust output signal. There is one drawback. The on/off switch is right next to a large bolt that keeps the battery latch closed. The bolt was very tight and I couldn't remove it by hand. Using a pair of pliers, I broke the switch. Not the internal switch, just the clear plastic push piece. It still works fine, but it would be better if they could put that bolt somewhere further away from the on/off switch.

7 years ago

Simple and does the job

no for fussy buyers, i have tested it out in a live situation, do not hear any noise buzzing or static.

signal is good and they have pads on it and ground lift if so u need them.

Highly recomend

7 years ago

The choice of ART Dualxdirect is cost-effective

I use it to connect electric guitar and bass to ART Dualxdirect to the console for both recording and PA use.The sound is clearly and accurate.It have full function such as ground lift?two switchable power source and attenuator,which is very useful in PA.ART Dualxdirect is a good choice for DI !

7 years ago

Solid Unit

Fairly transparent, easy to use DI. It is useful as a signal splitter when tracking guitars and you need multiple parallel inputs. The ground lift and attenuator work well although a switch to add gain would be useful.

8 years ago

Does what it says on the tin

I use this strapped to my pedalboard. It takes the stereo output from the effects chain, and sends it to front-of-house. The through connections go to a small monitor amp.

Clear sound, no noise. Just perfect.

Only adaption I had to make was cut a small notch in the battery compartment cover to allow for it a 9v supply from the pedal board. This was in-case there is no phantom power available where I am playing.

9 years ago

Good robust DI Box

This is a great little Dual X DI Box. Robust, affordable and very handy for studio and stage applications. No noise issues at all and a few good functions to help improve performance to suit situations. Well worth checking out.

9 years ago

Good D.I. for live

Good device for live music or to plug a pc for presentations: the sound quality is not the best of ever, but that's more than enough for live purposes.

Really good quality-price ratio.

10 years ago

Poor qualtiy sound

Not for anyone who wants to record or perform without unwanted hum and hiss.

Very disappointing.

Read all reviews >>

Technical Data

  • Manufactured by ART
  • Released in 2010
  • Average price : $77
  • Can be operated via phantom power or 9V battery
  • The incoming signal via the high-impedance, unbalanced jack and balanced XLR connectors is converted into an isolated, balanced and low-impedance signal
  • Ground-lift switch
  • Frequency response: 10 Hz - 100 kHz, ± 0.5 dB @ 0 dBu,
  • Dynamic capture:> 100 dB (typical)
  • Channel separation:> 80 dB (typical)
  • Max. Input Level: 4, 34 dBu
  • Max. Output level: 6 dBu (with battery operated), 14 dBu (powered by phantom power)
  • Inputs: 1/4 "TRS | XLR female balanced / unbalanced (2), 470k ohms
  • Parallel bushing: 1/4 "TRS (2)
  • Outputs: XLR male balanced. (2), <600 Ohm
  • Input attenuation: Switchable, (0, -30 dB)
  • Power supply: 9V @ 7.5mA (battery, alkaline), 18 - 48V DC @ 6.4mA (phantom power per channel)
  • Dimensions (WxDxH): 99 x 117 x 47 mm
  • Weight : 0.38kg
