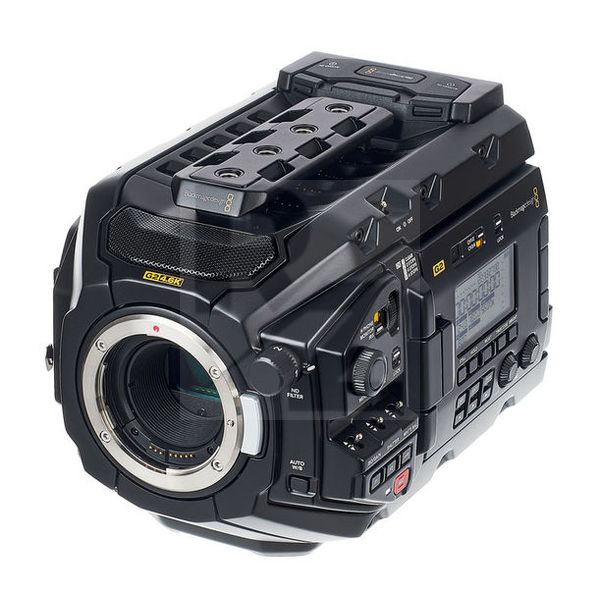

Blackmagic Design URSA Mini Pro 4.6K G2

Technical Data

• Manufactured by Blackmagic Design
• Average price : $6774
• 4.6K Super35 sensor (25.34 x 14.25 mm)
• 4608 x 2592 pixel resolution
• Records at up to 300 frames per second
• 15 Stops dynamic range at ISO up to 3200
• EF mount, optional PL, B4 or F mounts interchangeable
• SDI rates up to 12G
• Blackmagic RAW codec
• Two built-in dual recorders, one for CFast 2.0 cards and another for SD/UHS-II cards
• USB-C port for external drives
• Neutral density (ND) filters for 2, 4 and 6 stops with IR compensation
• Camera control via Bluetooth
• Included in delivery: URSA Mini Pro 4.6K G2 / module shutter / EF mount
• Effective sensor size: 25.34 x 14.25 mm (Super 35)
• Lens mount: EF mount included (interchangeable with optional PL, B4 and F mounts)
• Lens control: Electronic control of compatible lenses via poles on EF mount or 12-pin broadcast connector
• Dynamic range: 15 stops
• Recording resolutions: 4608 x 2592 / 4608 x 1920 (4.6K 2.40:1) / 4096 x 2304 (4K 16:9) / 4096 x 2160 (4K DCI) / 3840 x 2160 (Ultra HD) / 3072 x 2560 (3K Anamorphic) / 2048 x 1152 (2K 16:9) / 2048 x 1080 (2K DCI) / 1920 x 1080
• Frame rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps are supported
• Screen: 4" LCD with capacitive touch screen
• Video input: 1x SDI
• Video outputs: 1x SDI / 1x SDI monitoring, SDI rates 1.5G / 3G / 6G / 12G
• Analogue audio inputs: 2x XLR (switchable between microphone and line levels and AES audio, supports phantom power)
• Analogue audio outputs: 1x 3.5 mm headphone jack (supports iPhone microphone for talkback)
• Reference inputs: Tri-Sync / Black Burst / Timecode
• Remote control: 2x 2.5 mm LANC sockets for recording start/stop as well as iris and focus adjustment with compatible lenses
• Computer interface: USB type C 3.1
• Power supply: 1x external 12 V power supply (1x 12-pin Molex connector at the back of the battery tray)
• 1 x Four-pin XLR socket for external power sources or battery charging)
• Compatible with industry-standard carrier plates for V-mount and gold-mount batteries
• Dimensions (L x W x H): 209 x 202 x 147 mm
• Weight : 2.31kg
• Included software: URSA Mini Operating System / DaVinci Resolve Studio for Mac and Windows including activation key / Blackmagic Camera Setup / Blackmagic RAW Player / Blackmagic RAW QuickLook Plugin / Blackmagic RAW SDK
• Compatible operating systems: Mac 10.13 High Sierra / Mac 10.14 Mojave or higher / Windows 8.1 / Windows 10 Translated with
